Brand:Handler Manufacturing

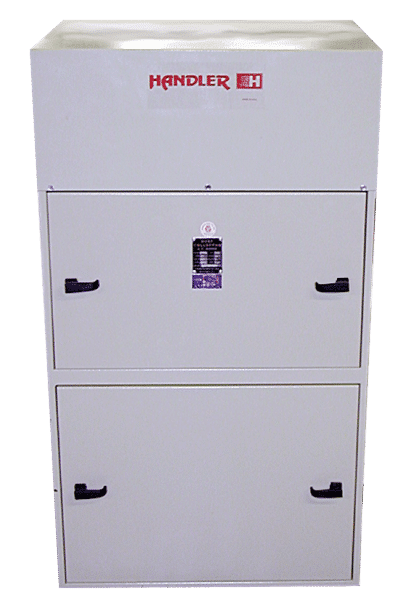

HANDLER MODEL 101 Brushless Dust Collector , 1 HP WITH DRUM CARTRIDGE FILTER – Runs on 115V/60HZ
$3,533.07
HANDLER MODEL 101 Brushless Dust Collector , 1 HP WITH DRUM CARTRIDGE FILTER – Runs on 115V/60HZ Model: 101 Shipping Weight: 240lbs One year warranty
A 1 HP suction unit designed to provide suction for up to 4 work positions, simultaneously. Powered by a 1 HP ball bearing, capacitor start, industrially rated brushless motor, the model 101 provides cost effective dust extraction with a state of the art drum cartridge filter technology which collect particles as small as ½ microns.
The 101 dust collector generates 800CFM (cubic feet per minute) through the inlets provided. The unit is finished in a baked, durable coating, runs on 115V/60HZ and ships complete with switch and box type silencer.
| Suction Inlets |
Four 3” (7.6cm) flanges – two mounted on each side of unit
|
| C.F.M. | 800 C.F.M. |
| Filtration |
Two drum cartridge filters provide superior filtration for all lab applications
|
| Replacement filters | Order 101 FC filters, quantity 2 |
Shipping weight: 270 lbs. [108.9 kg]
Unit dimensions: 26” W x 24” D x 41” H [66cm x 61cm x 104cm]
Available with 24 cloth filter bags.
- Description
- Additional information
- Brand
Description
101 Dust Collector – 800 CFM Multi‑Station Dust Extraction
Efficient, quiet, and powerful. The 1 HP 101 Dust Collector moves 800 CFM of air, captures particles as small as 0.5 µm, and supports up to four workstations at once. Keep dental labs and industrial benches spotless while cutting noise with an integrated box‑type silencer.
Why Choose the 101?
- Multi‑station suction – one unit services 4 positions.
- 0.5 µm filtration – drum‑cartridge filter + optional 24‑bag set.
- Quiet operation – built‑in silencer and brushless motor.
- Heavy‑duty build – steel cabinet, baked‑enamel finish.
- Plug‑and‑run – ships with switch, silencer, and filter installed.
Technical Specs
| Airflow | 800 CFM |
|---|---|
| Particle capture | 0.5 µm |
| Motor | 1 HP brushless, capacitor‑start |
| Voltage | 115 V / 60 Hz (standard) |
| Optional | 220 V single‑phase – Model 101‑2201 220 V three‑phase – Model 101‑2203 |
| Dimensions | 26″ W × 24″ D × 41″ H (66 × 61 × 104 cm) |
| Shipping weight | 270 lb / 108.9 kg |
Included & Available Parts
Unit ships ready‑to‑use with filter, switch, and silencer installed. Replacement doors, motors, bearings, filter bags, and other service parts are stocked for fast maintenance.
Features and Accessories: Includes switch and built-in silencer Drum cartridge filter included (captures 0.5-micron particles) Optional 24 cloth filter bags available Multiple power configurations for flexible installation P101-02 Door Upper P101-03 Door Lower P101-04 Handle for 101 Door (One) P101-05 Tray Lower Cabinet for 101 P101-06 Shaker Assembly w/Handle P101-08 25.00/Bag Hold-Down Bars, Each P101-09 Thumb Screw for Hold-Down B P101-10A Motor Suction 115/220 1Ph P101-10B Motor Suction 208-220/440 3 P101-11 Motor-Mounting Bolts, Each P101-12 Motor-Mounts-Rubber (Set of 4) P101-14 Wheel Suction 101 P101-14A Allen Wrench/101 Suc Whl1/8 P101-15 Suction Housing P101-16 Box Type Silencer P101-17 Sheet Metal Metal Screws P101-18 Felt Stripping, Per Foot P101-19 Switch On/Off w/Heater Coil P101-19H Heater Coil/Switch-Spec Volt P101-31 Red Cap for Dust Collectors P101-32 Bearings (Set) for 101 D/C
Additional information
| Weight | 200 lbs |
|---|---|
| Dimensions | 40 × 50 × 48 in |
| Manufacturer | Handler Manufacturing |
Brand
Handler Manufacturing
Handler Manufacturing is a well-known brand that specializes in dental laboratory equipment and instruments. They offer a variety of products such as benchtop grinders, polishing lathes, dust collectors, and other equipment used in dental laboratories.
