25K vs 30K Ultrasonic Scaler Inserts: How to Match Inserts to Your Scaler

The short answer on 25K vs 30K ultrasonic inserts is that neither one cleans better: what matters is that the insert matches the frequency of your magnetostrictive scaler. A 25K unit needs 25K inserts and a 30K unit needs 30K inserts, and Chase Dental Supply carries both in the Handpieces & Instruments category from TPC, Bonart and Vector USA (Bucky Beaver).

Key Takeaways

• Insert frequency must match the scaler: 25K inserts go in 25 kHz units, 30K inserts go in 30 kHz units.
• 30K inserts are shorter than 25K inserts, and Bonart notes there is no efficacy difference between the two.
• The Bonart M1 and TPC PowerMAX 25 are 25 kHz units. The Bonart M3II is listed in both 25 kHz and 30 kHz models, so confirm yours.
• Piezo scalers do not use 25K or 30K inserts at all. They use screw-on tips.
• Within one frequency, choose by tip design: universal, slim, triple bend or beavertail, with internal or external water flow.

25K vs 30K Ultrasonic Inserts at a Glance

Here are the magnetostrictive scaler inserts Chase Dental Supply carries, compared by frequency, tip design and water delivery. Specs come from each product listing.

What Is the Difference Between 25K and 30K Ultrasonic Inserts?

The difference is operating frequency and physical length, not cleaning ability. A magnetostrictive scaler insert is a stack of thin metal strips (Bonart lists a stacked nickel strip stem) that vibrates inside the handpiece when the unit’s coil energizes it.

A 25K insert is tuned to vibrate at about 25,000 cycles per second, and a 30K insert at about 30,000. Because the stack is tuned to its frequency, 30K inserts are shorter overall than 25K inserts.

Bonart’s own product notes state there is no efficacy difference between 25K and 30K inserts. The shorter 30K insert needs more power to oscillate at the same intensity as the longer 25K insert, and Bonart recommends keeping an operatory on one frequency for ease of use.

Can you use a 30K insert in a 25K scaler?

No. Bonart’s listings state that its 25K inserts are not compatible with 30K units and vice versa, so order the frequency your scaler is built for.

How Do You Tell if Your Scaler Is 25K or 30K?

Check the label on the scaler unit or the operator’s manual, which lists the operating frequency.

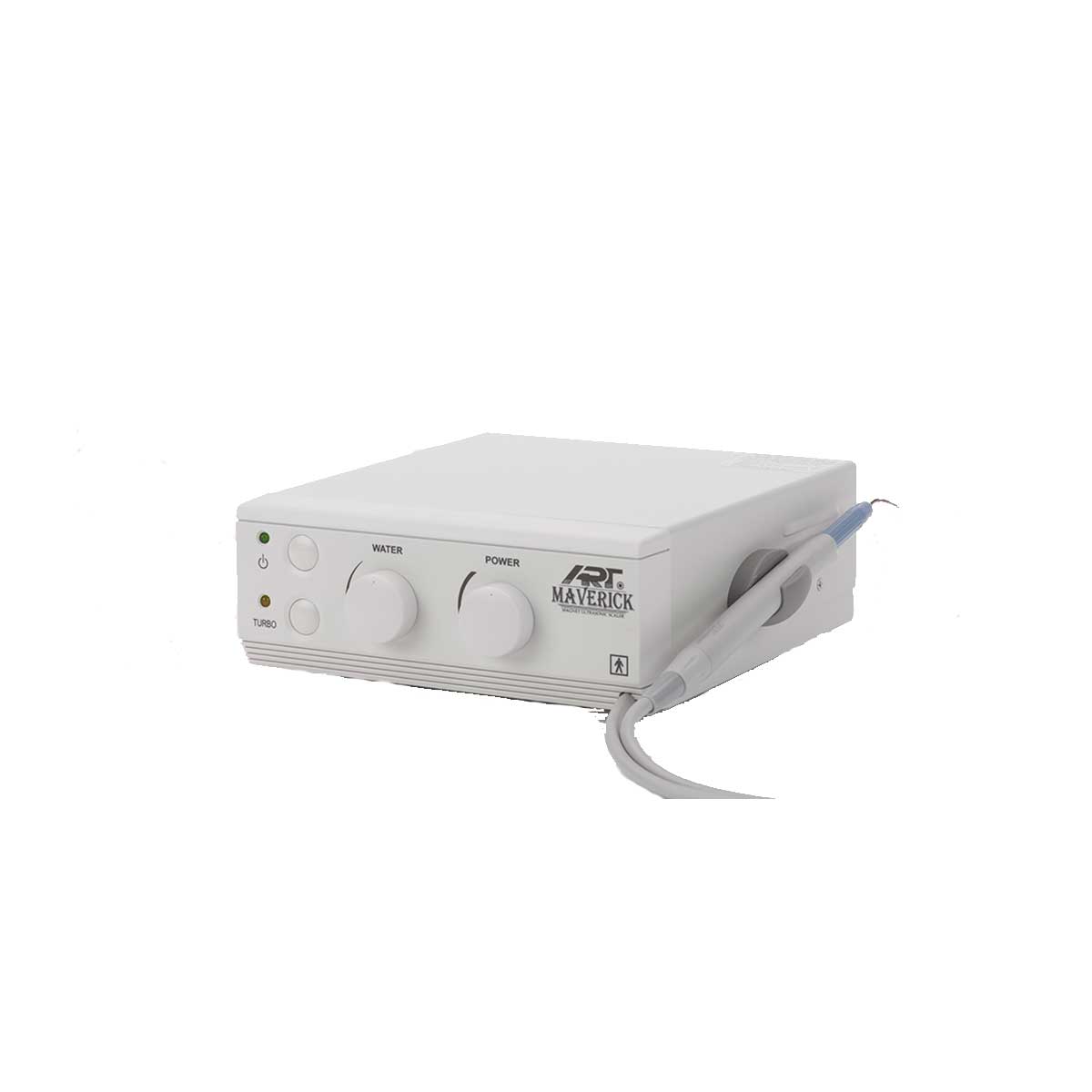

• Bonart Magnetostrictive Ultrasonic Scaler M1, 25K: available only as a 25 kHz model, with turbo and regular scaling modes.
• Bonart Magnetostrictive Ultrasonic Scaler M3II: offers scaling, perio and endo modes and is listed in both a 25 kHz and a 30 kHz 110V model. Confirm which one is in your operatory before ordering inserts.
• TPC PowerMAX 25 Ultrasonic Scaler: a 25 kHz unit with automatic tuning and linear power control, shipped with a 25K universal insert and foot control.
• TPC PowerMAX Scaler Handpiece Assembly 25K: the 25K handpiece assembly for PowerMAX owners, with a 7.5 foot cable.

Which Magnetostrictive Scaler Inserts Does Chase Carry?

Chase Dental Supply carries three insert lines, each in both frequencies.

TPC Ultrasonic Scaler Inserts

The TPC Ultrasonic Scaler Inserts 25K or 30K come in four styles per frequency. S1 and S2 styles have a metal handle with external water (S2 adds a slim tip), while S3 and S4 use a large round plastic grip with internal water. TPC lists them as interchangeable with other major scaler brands and backs them with a 90 day warranty against defects. See all TPC products.

Vector USA Bucky Beaver Inserts

Bucky Beaver inserts are color coded by design: orange Triple Bend for heavy calculus and green General Scaling Slim Design for subgingival work at low power. The General Scaling style covers routine scaling across all power ranges.

Bonart P-10, P-100, IF-5 and Triple Bend

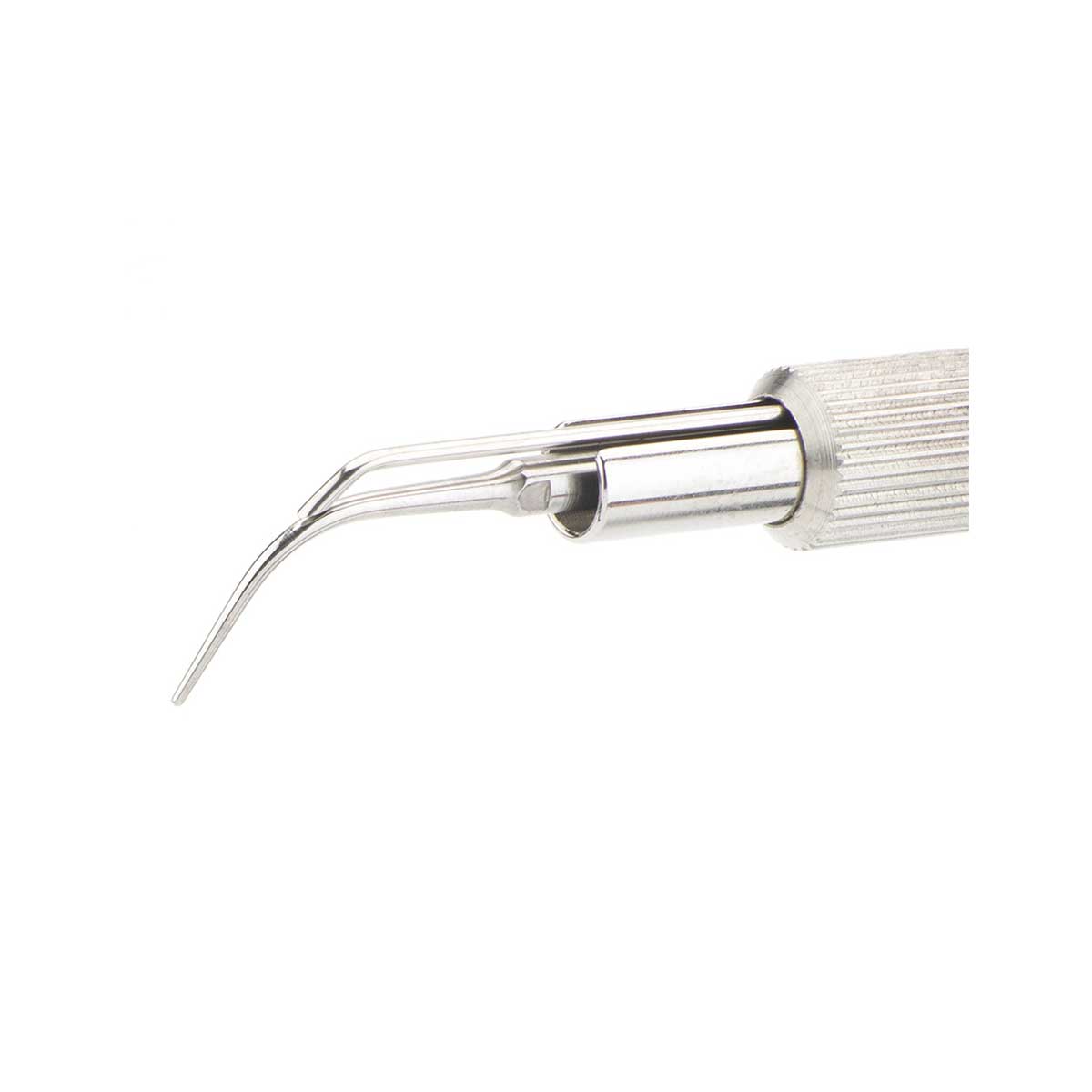

The Bonart P-10 is a universal tip with a metal grip and external water for general scaling. The P-100 is a slim perio insert in straight, left and right angled versions for low to medium power only; Bonart warns that running it at high power or using it for general scaling can break the tip. The IF-5 Beavertail is a spatula shaped insert with internal water for hidden calculus.

Do Piezo Scalers Use 25K or 30K Inserts?

No. Piezoelectric scalers do not use magnetostrictive inserts. They use small screw-on tips that thread onto the handpiece, and the vibration comes from piezo elements inside the handpiece instead of an insert stack.

For piezo units, see our guide to TPC Piezo and Ultrasonic Scalers: Advance 850, 800N, 750N and PowerMAX.

Which One Should You Choose?

• Choose 25K inserts if you run a Bonart M1, a 25 kHz Bonart M3II or a TPC PowerMAX 25.
• Choose 30K inserts if your unit is labeled 30 kHz, such as the 30 kHz Bonart M3II.
• General practice with mixed units: label inserts by operatory, or standardize on one frequency.
• Hygienist doing heavy debridement: a triple bend (Bucky Beaver or Bonart) or a universal Bonart P-10.
• Perio maintenance and subgingival work: Bucky Beaver Slim or Bonart P-100 at low power.
• Mobile dentistry and hygiene schools: the TPC PowerMAX 25 kit plus a few TPC 25K inserts keeps every station on one frequency.

Shop the Products

Frequently Asked Questions

What is the difference between 25K and 30K ultrasonic inserts?

25K inserts vibrate at about 25,000 cycles per second and 30K inserts at about 30,000. 30K inserts are physically shorter than 25K inserts. Bonart states there is no efficacy difference between them; the key is matching the insert to the scaler’s frequency.

Can I use a 25K insert in a 30K scaler?

No. Magnetostrictive inserts must match the operating frequency of the scaler unit. A 25K insert belongs in a 25 kHz unit and a 30K insert belongs in a 30 kHz unit.

How do I know if my ultrasonic scaler is 25K or 30K?

Look at the label on the scaler unit or the operator’s manual, which lists the operating frequency. The Bonart M1 and TPC PowerMAX 25 are 25 kHz units, while the Bonart M3II is sold in both 25 kHz and 30 kHz models. Call Chase Dental Supply at 888-548-7582 if you need help confirming.

Do piezo scalers use 25K or 30K inserts?

No. Piezoelectric scalers use screw-on tips that thread onto the handpiece rather than magnetostrictive inserts. The 25K and 30K labels apply only to magnetostrictive scalers.

Which Bucky Beaver insert should I choose?

Vector USA lists the orange Triple Bend for heavy calculus removal at all power ranges and the green General Scaling Slim Design for subgingival scaling at low power. The General Scaling insert covers routine scaling. Order whichever design you need in the frequency that matches your scaler.

Getting 25K vs 30K ultrasonic inserts right is simple once you know your unit’s frequency: match it, then pick the tip design for the job. Ultrasonic scaling produces aerosol, so pair it with the right PPE from our dental glove comparison. Browse the full Handpieces & Instruments category, or email sales@chasedentalsupply.com with your scaler model for help.
