Dental Operatory Lights Compared: TPC LED vs Beaverstate LED and Celux Halogen

The right dental operatory light depends on three things: how the light mounts in your room, how much light output and color control you need, and whether you are replacing an older halogen head or outfitting a new build. Chase Dental Supply carries LED operatory lights from TPC (Lustrous, Lucent, Radiant and Luminous), LED lights from Beaverstate Dental (FL-3000 and FL-3100), and the Beaverstate Celux halogen light (CLX-110 and CLX-220).

This guide compares them using only manufacturer listed specs. For a single brand, see our TPC LED operatory lights comparison and our Beaverstate operatory lights guide.

Key Takeaways

• TPC lists 3,000 to 35,000 lux at 700mm for the Lucent, Radiant and Luminous, and 8,000 to 30,000 lux at 700mm for the Lustrous.
• The Beaverstate FL-3000 and FL-3100 LED lights list 5,000 Kelvin, removable autoclavable handles and power use under 12 watts.
• The Celux CLX-110 and CLX-220 are halogen lights with a two-way switch: 12,000 lux low and 24,000 lux high, at 3,800 to 4,500 Kelvin.
• TPC offers touchless SENSOR versions of the Lucent, Radiant and Luminous.
• TPC lights need a separate light post (LP48 or LP48-RI) when the light is ordered on its own.

LED vs halogen dental operatory lights: what is the difference?

LED operatory lights produce light from solid-state diodes, while halogen lights use a heated tungsten filament bulb. In general, LED heads run cooler, draw less power and avoid routine bulb changes.

Every TPC light in this comparison lists a static heat sink with no fan, so there is no fan noise or fan to clean. The Beaverstate LED lights list power consumption of less than 12 watts. The Celux halogen light uses a 12V, 55 watt tungsten halogen H-3 bulb with twin filaments, and its reflector has a dichroic coating that filters out infrared rays to keep the light cool on the patient.

What do lux, Kelvin, mounting and handle specs mean?

Lux measures light intensity on the working area, Kelvin describes the color of the light, and the mounting type decides where the light attaches in the room.

Lux (light intensity)

Lux is the amount of light landing on a surface. A wide range lets the clinician dim the light during composite work to avoid premature curing. TPC states its lux values at 700mm.

Color temperature (Kelvin)

Color temperature is how warm or cool the light looks, measured in Kelvin. Values near 5,000 Kelvin read as neutral daylight, which many clinicians prefer for tissue assessment and shade matching.

Mounting: post, ceiling and track

A post mount light sits on a pole attached to the dental chair or delivery unit, so it moves with the chair. A ceiling mount light hangs from the ceiling and keeps the chair area clear. Track mounting runs a light along a ceiling rail; none of the models in this guide list a track option, so call to confirm compatibility with an existing track.

Handles, sensors and cooling

Removable handles that can be autoclaved or sterilized simplify infection control between patients. A SENSOR model lets the clinician switch the light without touching it, which reduces contact points. Static heat sink cooling means no fan.

How do the TPC, Beaverstate LED and Celux halogen lights compare?

TPC publishes lux, illumination area and cooling details for each model, Beaverstate lists color temperature, handles and power use for its LED lights, and the Celux lists both lux settings and Kelvin.

TPC LED lights in brief

All four TPC heads share 110V/220V input, 24 volt output, a static heat sink and a 100mm x 180mm illumination area at 700mm. The TPC Lustrous LED Operatory Light is the only TPC model with a stated 5,000 Kelvin rating and a dimmer from 8,000 to 30,000 lux.

The TPC Lucent LED Operatory Light is the most flexible on mounting, with standard and SENSOR versions in both post and ceiling mount. The TPC Luminous LED Operatory Light adds removable, sterilizable handles, and its ceiling version includes a 130cm or 170cm column.

Beaverstate FL-3000 and FL-3100 LED

The two Beaverstate LED lights share the same head: 320 degree rotation with 2 axis movement, a toggle dimmer on/off switch that remembers the last intensity, 5,000 Kelvin and removable autoclavable handles. The Beaverstate FL-3000 is the top post mount version and the Beaverstate FL-3100 is the ceiling mount version. Lux is not listed; see product page or call to confirm.

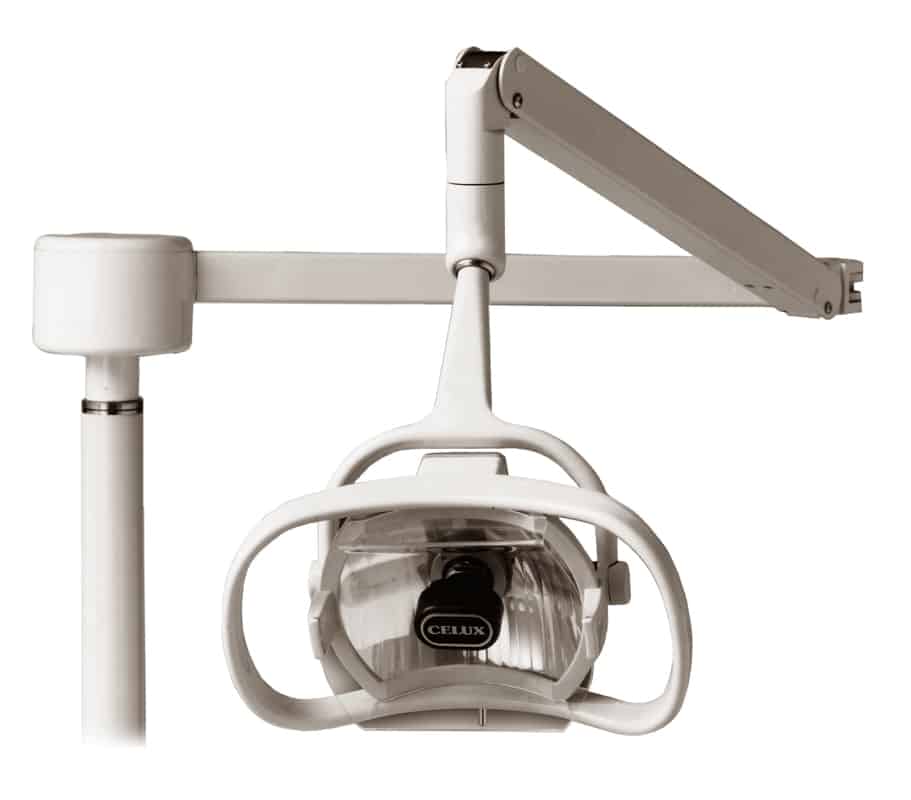

Beaverstate Celux CLX-110 and CLX-220 halogen

The Celux is a halogen light with a sharply defined rectangular light pattern, 3 x 7 inches at 28 inches, and a lamp head that adjusts vertically, horizontally or diagonally. The Celux CLX-110 is the 110V version and the Celux CLX-220 is the 220V version. It requires a Celux/Pelton light bushing (part number 146-208 in a Beaverstate post).

Which dental operatory light should you choose?

Start with how the light will mount, then narrow by touchless operation, handles and color temperature.

New build with a ceiling mount

The TPC Lucent and Lustrous ceiling versions include a standard extension post for 8, 9 or 10 foot ceilings, the TPC Luminous ceiling version includes a 130cm or 170cm column, and the Beaverstate FL-3100 is a dedicated ceiling mount LED. If you are also choosing chairs, our dental chairs comparison covers the other half of the operatory.

Retrofit on an existing chair post

For a chair or delivery unit that already has a light post, look at the post mount TPC Lustrous, Lucent, Radiant or Luminous, or the Beaverstate FL-3000 top post light. TPC lights require the LP48 or LP48-RI light post when the light is ordered separately, so confirm your post before ordering. Practices with TPC chairs can see our TPC Mirage and Laguna dental chairs guide.

Replacing an existing Celux light

If your operatory already runs a Celux or Pelton style head, the Celux CLX-110 or CLX-220 is the most direct swap, since it uses the same Celux/Pelton bushing. Match the voltage to your unit, or call us with your post details if you would rather move to LED.

Touchless sensor operation

For fewer touch points, choose a SENSOR model: the TPC Lucent SENSOR (post or ceiling), Radiant SENSOR (post) or Luminous SENSOR (post). Pairing sensor operation with removable, sterilizable handles, as on the Luminous, covers both sides of infection control.

Shop the Products

Frequently Asked Questions

Is an LED or halogen dental operatory light better?

LED operatory lights generally run cooler, use less power and avoid routine bulb changes, which is why most new operatories use LED. Halogen lights such as the Celux CLX-110 and CLX-220 remain a practical choice when replacing an existing Celux or Pelton head on the same bushing.

How many lux does a TPC operatory light produce?

TPC lists 3,000 to 35,000 lux at 700mm for the Lucent, Radiant and Luminous LED operatory lights. The TPC Lustrous lists 8,000 to 30,000 lux at 700mm with a dimmer mode.

What color temperature are these operatory lights?

The TPC Lustrous and the Beaverstate FL-3000 and FL-3100 LED lights list 5,000 Kelvin. The Celux CLX-110 and CLX-220 halogen lights list 3,800 to 4,500 Kelvin. For the TPC Lucent, Radiant and Luminous, see the product page or call to confirm.

Which operatory lights have touchless sensor versions?

TPC offers SENSOR versions of the Lucent in post and ceiling mount, and of the Radiant and Luminous in post mount. A sensor light switches without touching the head, reducing contact points.

Do TPC operatory lights include a light post?

TPC notes that a light post must be ordered if the light is ordered separately: the LP48 for the Lucent and Lustrous, and the LP48-RI for the Radiant and Luminous. Ceiling mount versions of the Lucent and Lustrous include a standard extension post for 8, 9 or 10 foot ceilings.

Whether you are fitting out a new operatory or replacing a worn halogen head, Chase Dental Supply carries LED and halogen operatory lights from TPC and Beaverstate Dental. Browse more equipment in our dental lab and office supply brands guide, or email sales@chasedentalsupply.com with your room details.
