TPC Piezo and Ultrasonic Scalers: Advance 850, 800N, 750N and PowerMAX

TPC piezo scalers and ultrasonic scalers cover every common setup: the Advance 850 and Advance 750N are standalone piezo units, the Advance 800N builds into your delivery system, and the PowerMAX 25 runs Cavitron-style 25K inserts. TPC also makes the tips, inserts and an air-driven sonic scaler, and Chase Dental Supply carries the full range.

This guide explains how each model works, what ships in the box and which one fits your hygiene room.

Key Takeaways

• The Advance 850 and 800N both list a maximum 10W output at 24 to 28 kHz with automatic tuning.
• The Advance 800N installs in your delivery unit and runs from the unit foot control, with no external water line or power cord.
• The Advance 850 ships with G1, G2, G4, P3, P4 and P5 tips plus an endo file holder and files.
• The PowerMAX 25 accepts Cavitron, P, SLI, TFI and FSI style inserts and adjusts from about 10 to 40 watts.
• Match insert frequency to the unit: the PowerMAX 25 uses 25K inserts.

Piezo vs magnetostrictive ultrasonic scalers: what’s the difference?

A piezo scaler uses ceramic crystals in the handpiece to vibrate a screw-on tip, while a magnetostrictive scaler uses a metal stack inside a removable insert. Both remove calculus with high frequency vibration and water, but they feel and handle differently.

Piezo tips move in a mostly linear, back and forth pattern, so clinicians adapt the lateral sides of the tip to the tooth. Magnetostrictive inserts move in an elliptical pattern, and inserts are made in 25K and 30K versions that must match the unit.

TPC covers both sides. The Advance 850, 800N and 750N are piezo units, and the PowerMAX 25 is an insert-style ultrasonic scaler that accepts magnetostrictive 25K inserts. For offices without a powered scaler, the TPC Sonic Air Scaler AS5000 is an air-driven option that connects to 2 or 4 hole handpiece tubing.

TPC piezo scalers vs the PowerMAX 25: which should I choose?

Choose by how you want the scaler installed and which tip or insert system your hygienists prefer. Standalone units sit on the counter; built-in units hide in the delivery system.

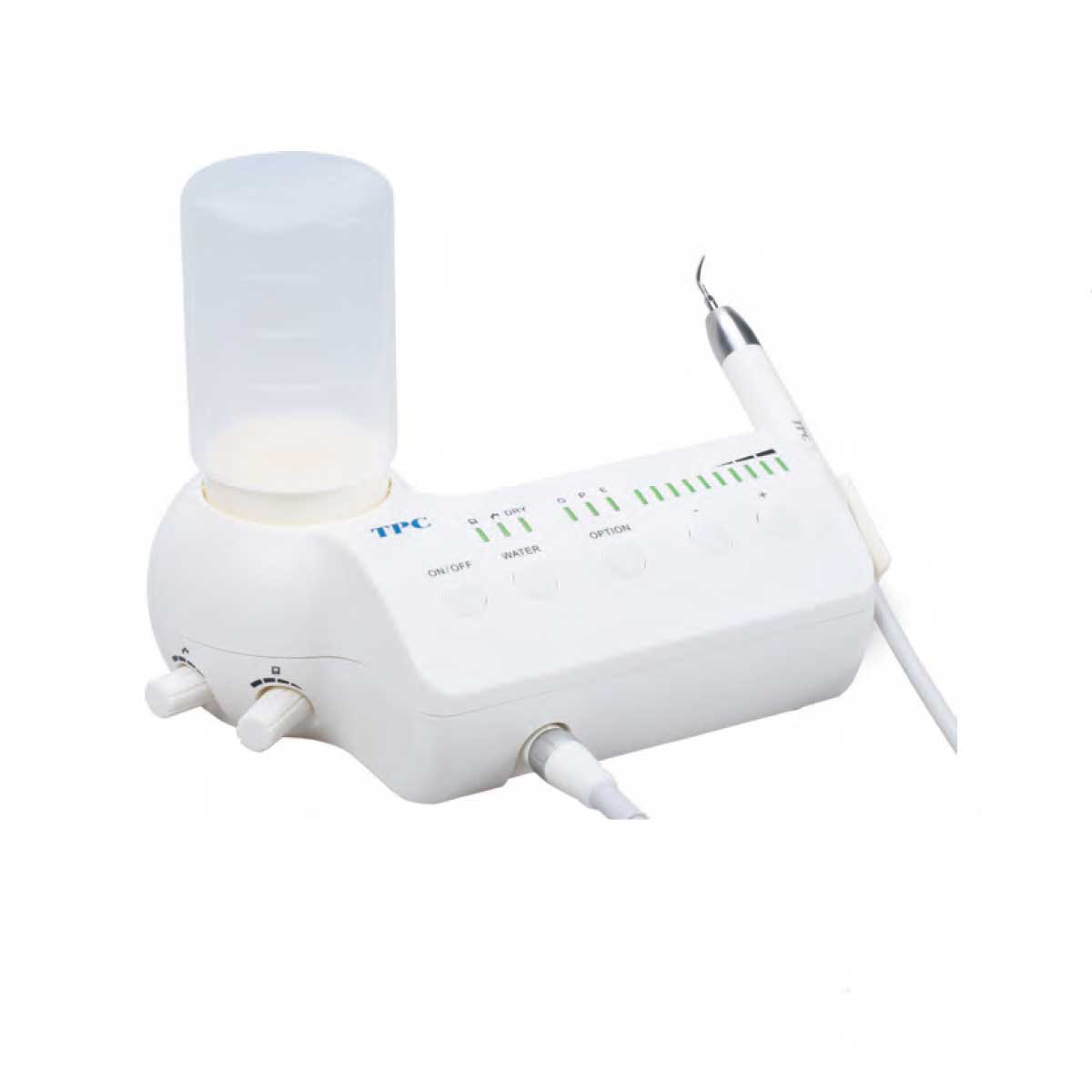

TPC Advance 850 LED Piezo Ultrasonic Scaler

The TPC Advance 850 LED Piezo Ultrasonic Scaler w/ Handpiece is a compact unit that fits anywhere in the operatory. TPC lists an autoclavable handpiece, a fine water spray, no heat build-up in the tip with extended use, and a power range covering general, perio and endo applications.

It runs from a water bottle or an external water source at 30 to 145 PSI and uses 10 to 50 cc of water per minute. When ordering, specify EMS or Satellec style tips.

TPC Advance 800N Piezo Ultrasonic Built-In Scaler

The TPC Advance 800N Piezo Ultrasonic Built-In Scaler (A800N) installs inside the dental unit and runs from the unit foot control, so there is no extra foot control, external water line or power cord on the counter. Its small electronic box measures 2-3/8″ L x 1.5″ W x 1.25″ H and runs on a 24V, 1 amp transformer.

The 800N is also offered as an add-on to the TPC Mirage LED Operatory Package. Our guide to TPC Mirage and Laguna chairs covers the full operatory packages.

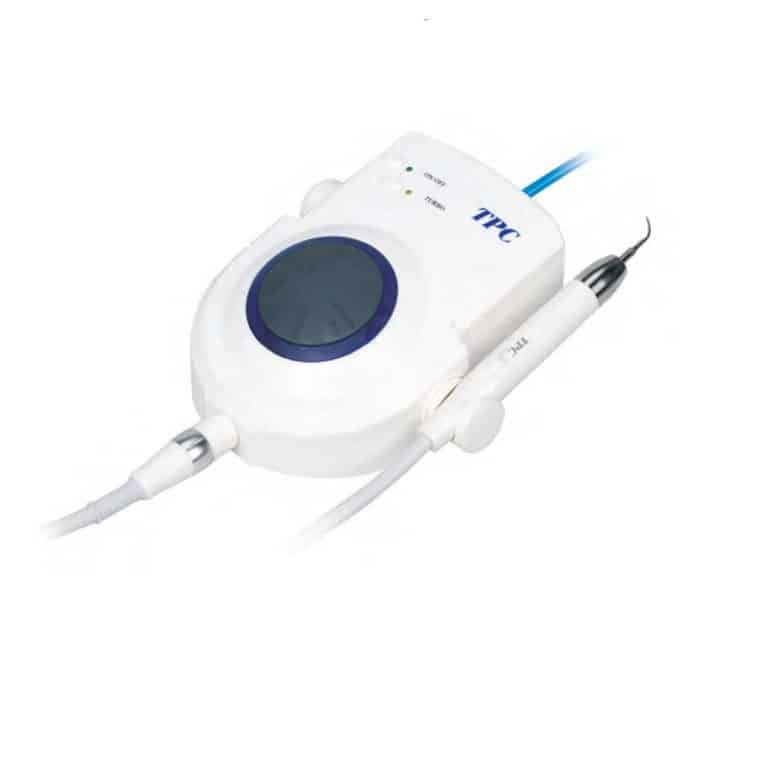

TPC Advance 750N Piezo Ultrasonic Scaler and Endodontic Unit

The TPC Advance 750N Piezo Ultrasonic Scaler and Endodontic Unit combines scaling with endodontic use. Its kit includes #1, #2, #3, #4 and #P5 tips, a foot control and a tip wrench, and TPC lists an optional endodontic file holder. The unit measures 160 mm x 155 mm x 70 mm and weighs 2.1 kg.

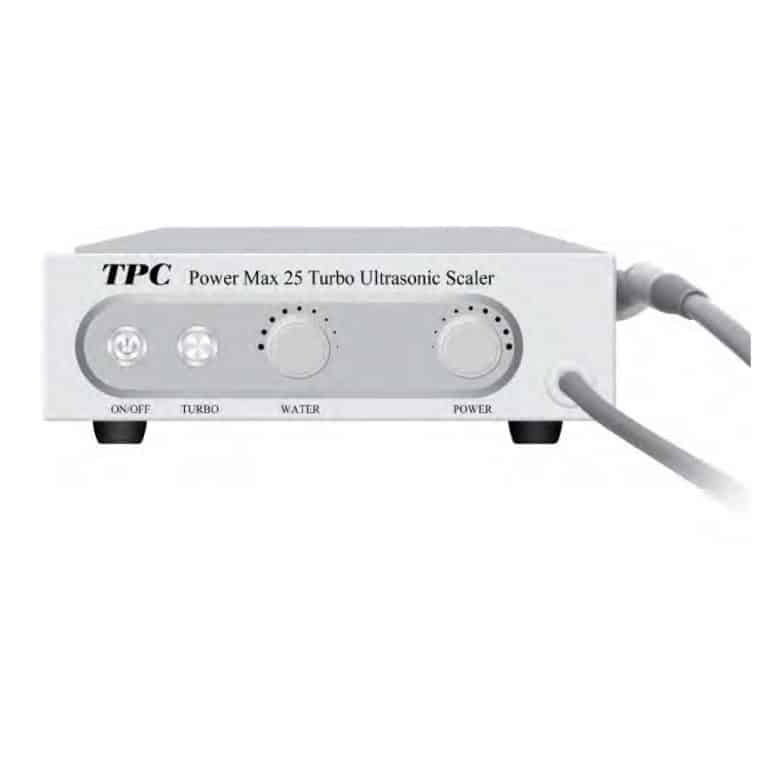

TPC PowerMAX 25 Ultrasonic Scaler

The TPC PowerMAX 25 Ultrasonic Scaler with Insert is the choice for hygienists who prefer insert-style scaling. It accepts Cavitron, P, SLI, TFI and FSI scaler inserts, uses precision automatic tuning and linear power control, and adjusts output from about 10 to 40 watts.

The unit weighs 6 lbs, measures 8″ x 8″ x 3″, auto-ranges from 110 to 240 VAC, and runs on city water or a bottle system at 25 to 60 PSIG. The kit includes a 25K universal insert and foot control.

Replacement parts are sold separately, including the TPC PowerMAX Scaler Handpiece Assembly 25K and the TPC PowerMAX Scaler Foot Control with Cable.

How do you choose TPC piezo tips and ultrasonic inserts?

Choose piezo tips by the job, and choose ultrasonic inserts by frequency first, then by handle and water delivery. A mismatched insert frequency will not tune correctly in the unit.

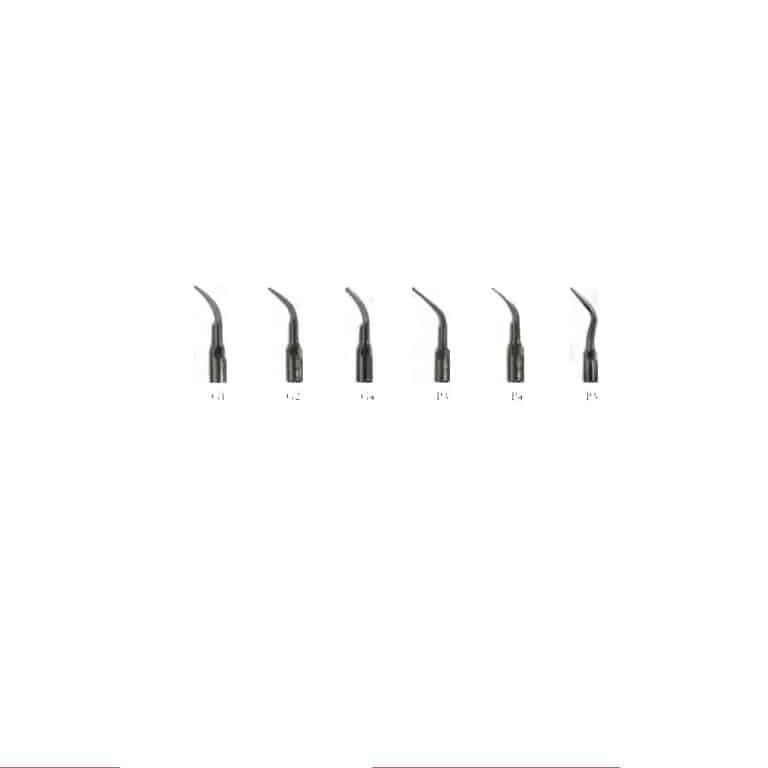

TPC Piezo Scaler Tips & Accessories include G1 and G2 general scaling tips, the G4 chisel tip, the P3 slim perio tip and the P4 and P5 perio tips, plus handpieces, tubing, O-rings and a 5 tip assortment. TPC Ultrasonic Scaler Inserts 25K or 30K come in 25K and 30K versions, with metal handle, slim tip and plastic handle internal water styles, and TPC lists them as interchangeable with other leading scaler brands.

Equipping a mobile program? A compact standalone scaler pairs well with the systems in our guide to TPC portable dental systems.

Shop the Products

Frequently Asked Questions

What is the difference between the TPC Advance 850 and Advance 800N?

The Advance 850 is a standalone piezo scaler with its own foot control and water bottle, and it ships with six tips plus an endo file holder and files. The Advance 800N is built into the dental unit and runs from the unit foot control, with no external water line or power cord. Both list a maximum 10W output at 24 to 28 kHz with automatic tuning.

Does the TPC PowerMAX 25 accept Cavitron inserts?

Yes. TPC lists the PowerMAX 25 as accepting Cavitron, P, SLI, TFI and FSI scaler inserts. It is a 25K unit, so use 25K inserts. The kit includes one 25K universal insert and a foot control.

Is the TPC Advance 850 handpiece autoclavable?

Yes. TPC lists an autoclavable handpiece on the Advance 850 LED piezo ultrasonic scaler. Follow the manufacturer’s instructions for use for reprocessing steps.

Can a TPC piezo scaler be used for endodontics?

The Advance 850 includes an endodontic file holder and files, and TPC lists general, perio and endo applications in its power range. The Advance 750N is sold as a piezo scaler and endodontic unit with an optional endo file holder.

Should I buy 25K or 30K ultrasonic inserts?

Match the insert to your scaler’s frequency. The TPC PowerMAX 25 is a 25K unit, so it uses 25K inserts. TPC ultrasonic scaler inserts are sold in both 25K and 30K versions for other compatible units.

TPC piezo and ultrasonic scalers give you a choice of countertop, built-in and insert-style units, so you can match equipment to your hygienists rather than the other way around. Shop the full TPC scaler and hygiene line at Chase Dental Supply, or email sales@chasedentalsupply.com with questions about tips, inserts or installation.
