Bonart ART-E1 Electron Electrosurgery Unit: Electrodes, Handpieces and Accessories
The Bonart electrosurgery unit, the ART-E1 Electron, is a stand-alone device for cutting and coagulating soft tissue, with 10 power levels and three modes: Cut, Coag 1 and Coag 2. Chase Dental Supply carries the full Bonart Electron system along with its replacement electrodes, green and blue handpieces, bipolar converter and universal foot switch.
Quick Answer
The Bonart ART-E1 Electron is a monopolar electrosurgery unit with a maximum output of 50W at a 400 ohm load, a 1.5 to 1.7 MHz working frequency, 10 power levels and Cut, Coag 1 and Coag 2 modes. It ships with a hand piece, indifference (grounding) plate, universal foot switch and a 7 piece electrode set. Green and blue handpieces each work only with their matching electrode style.
Key Takeaways
- The ART-E1 Electron offers 10 power level settings and 3 operating modes (Cut, Coag 1, Coag 2), with a 50W maximum output at a 400 ohm load.
- Included parts: main unit, power cord, PP0031-002 universal foot switch, EU0004-002 indifference/grounding plate, EU0003-032 E1 hand piece and the TE0002-002 assorted set of 7 electrodes.
- Green Tungsten handpieces work only with green electrodes, and blue-style handpieces (for older Electron units) work only with blue-style electrodes.
- The EU0013-002 bipolar converter does not convert the ART-E1 to bipolar mode. It only allows bipolar prongs and handpieces, which are sold separately and not by Bonart.
- PC board, hand piece and power cord carry a 1-year limited warranty; foot switch, electrodes and grounding plate carry a 90-day limited warranty.
What does a dental electrosurgery unit do?
A dental electrosurgery unit uses high-frequency electrical current, delivered through a fine electrode tip, to cut soft tissue or to coagulate it and control bleeding.
The ART-E1 is a monopolar system. Current leaves the unit through the active electrode in the hand piece, passes through the patient, and returns through the indifference plate (also called the grounding or dispersive plate). Correct plate placement and contact matter, so follow the Bonart instructions for use every time.
Cut vs coag: what’s the difference?
Cut mode is designed to divide tissue with a clean incision and limited lateral heat. Coag modes are designed to seal small vessels for hemostasis, which spreads more heat into the surrounding tissue.
The Electron offers one cut mode and two coagulation modes. Mode and power settings for any procedure should come from the manufacturer’s instructions and hands-on electrosurgery training.
Bonart electrosurgery unit specs: ART-E1 Electron
The Bonart Electrosurgery System E1 (ART-E1 Electron) is a compact tabletop unit offered in 110V, with a 220V model also available.
- Maximum power output: 50W (at 400 ohm load)
- Power supply: 110V plus or minus 5%, 50/60Hz, 92VA, or 220V plus or minus 5%, 50/60Hz, 92VA
- Work frequency: 1.5 to 1.7 MHz (plus or minus 5%)
- Dimensions: 23 cm (L) x 22.5 cm (W) x 8.5 cm (H)
- Hand piece cable length: 190 cm; indifference plate cable length: 190 cm
- Weight: 12 lbs
- Part number: E1-2-ART-v-A1-70-0

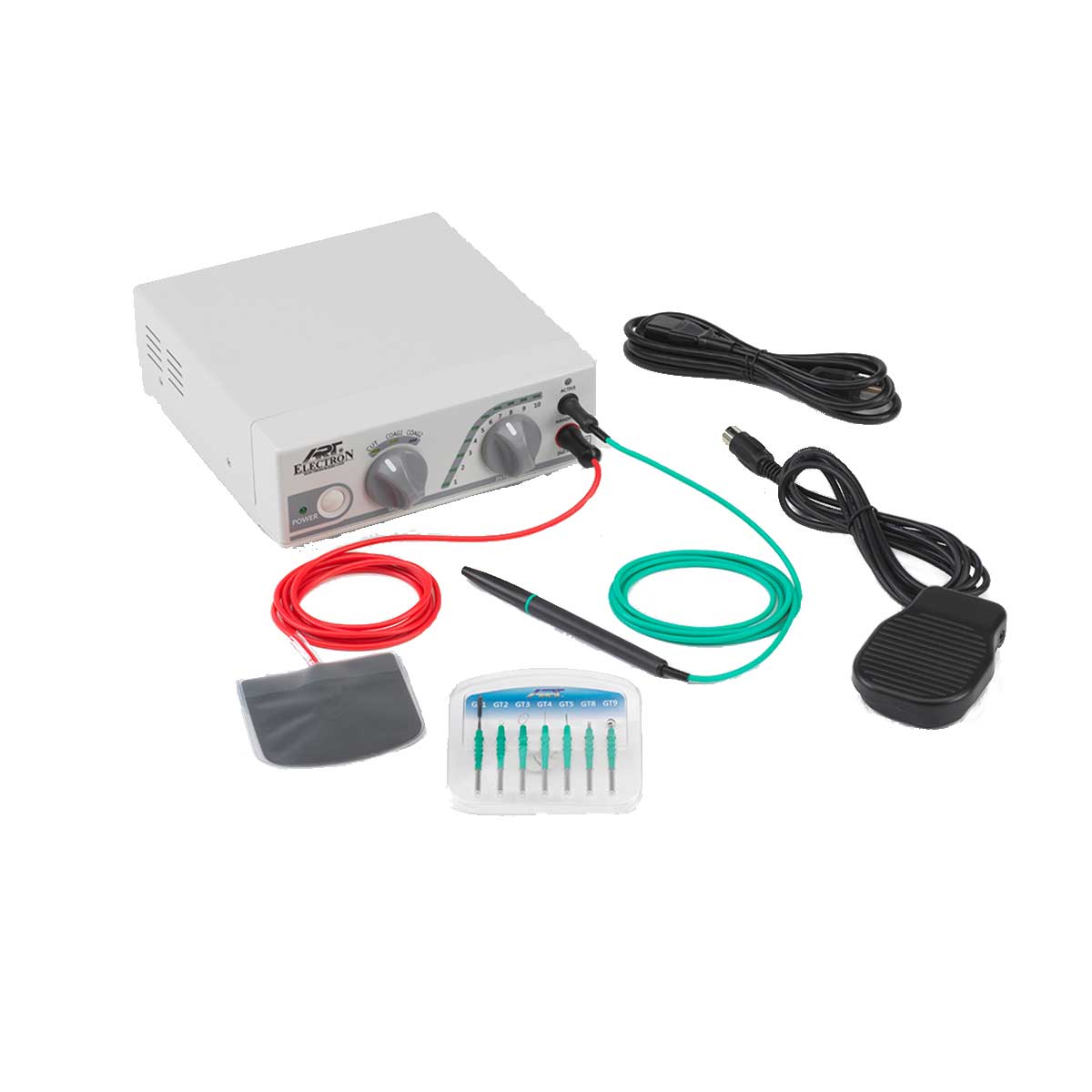

What comes in the box?
The ART-E1 ships as a complete system: the Electron main unit, power cord, PP0031-002 universal foot switch, EU0004-002 indifference/grounding plate, EU0003-032 E1 hand piece and the TE0002-002 assorted electrode set of 7. The bipolar converter (EU0013-002) is listed as an optional part and is not included.
ART-E1 warranty terms
The PC board, hand piece and power cord each carry a 1-year limited warranty. The foot switch, electrodes and indifference/grounding plate each carry a 90-day limited warranty.
Setting up an Electron for your practice?
Chase Dental Supply carries the ART-E1 unit, electrodes and handpieces. Call for current pricing and help confirming which handpiece style your unit uses.
Which ART-E1 electrode should I use?
Electrode shape determines what the tip is suited for: fine wires for precise incisions, loops for shaving and contouring tissue, and balls for coagulation.
The Bonart Electrodes for ART-E1 Electrosurgery (all sizes) listing offers the 7 piece set or single electrodes in 1/pk. That set includes the T1, T2, T3, T4, T5, T7 and T9 electrodes.
Green tungsten electrodes for the ART-E1

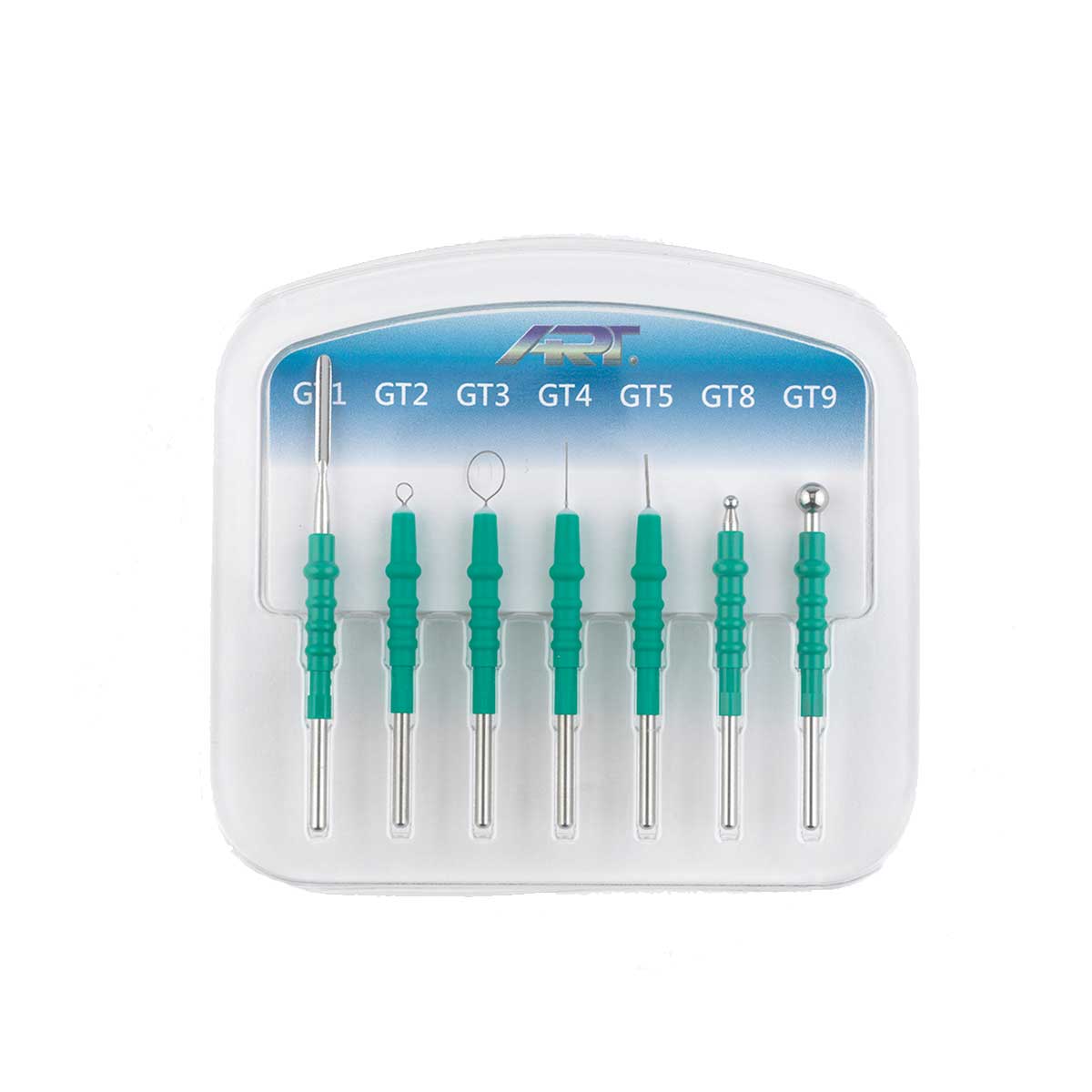

The Bonart Green Electrodes for ART-E1 Electrosurgery listing (SKU TE-0001-012-1) is the green tungsten line. Its itemized set includes GT1 diamond, GT2 small loop, GT3 large loop, GT4 fine wire, GT5 heavy wire, GT8 small ball (2.38 mm) and GT9 heavy ball (5 mm). Green electrodes require the green handpiece.
ART-E1 electrode comparison
Use this table as a quick reference, and rely on the Bonart instructions for use for settings.
| Electrode shape | T-series (standard set) | Green GT-series | General use |
|---|---|---|---|
| Diamond shaped | T1 (TE0001-012) | GT1 (TE0001-452) | Shaped cutting tip; see IFU for recommended use |
| Small loop | T2 (TE0001-022) | GT2 (TE0001-462) | Shaving and contouring small areas of soft tissue |
| Large loop | T3 (TE0001-032) | GT3 (TE0001-472) | Planing and contouring larger tissue areas |
| Fine wire | T4 (TE0001-042) | GT4 (TE0001-482) | Precise, narrow incisions |
| Heavy wire | T5 (TE0001-052) | GT5 (TE0001-492) | Sturdier incisions where a fine wire may flex |
| Oval loop | T7 (TE0001-072) | Not in green set | Loop for contouring tissue |
| Small ball (2.38 mm) | Not in standard set | GT8 (TE0001-502) | Coagulation of small, localized areas |
| Heavy ball (5 mm on GT9) | T9 (TE0001-092) | GT9 (TE0001-512) | Coagulation over a broader surface |

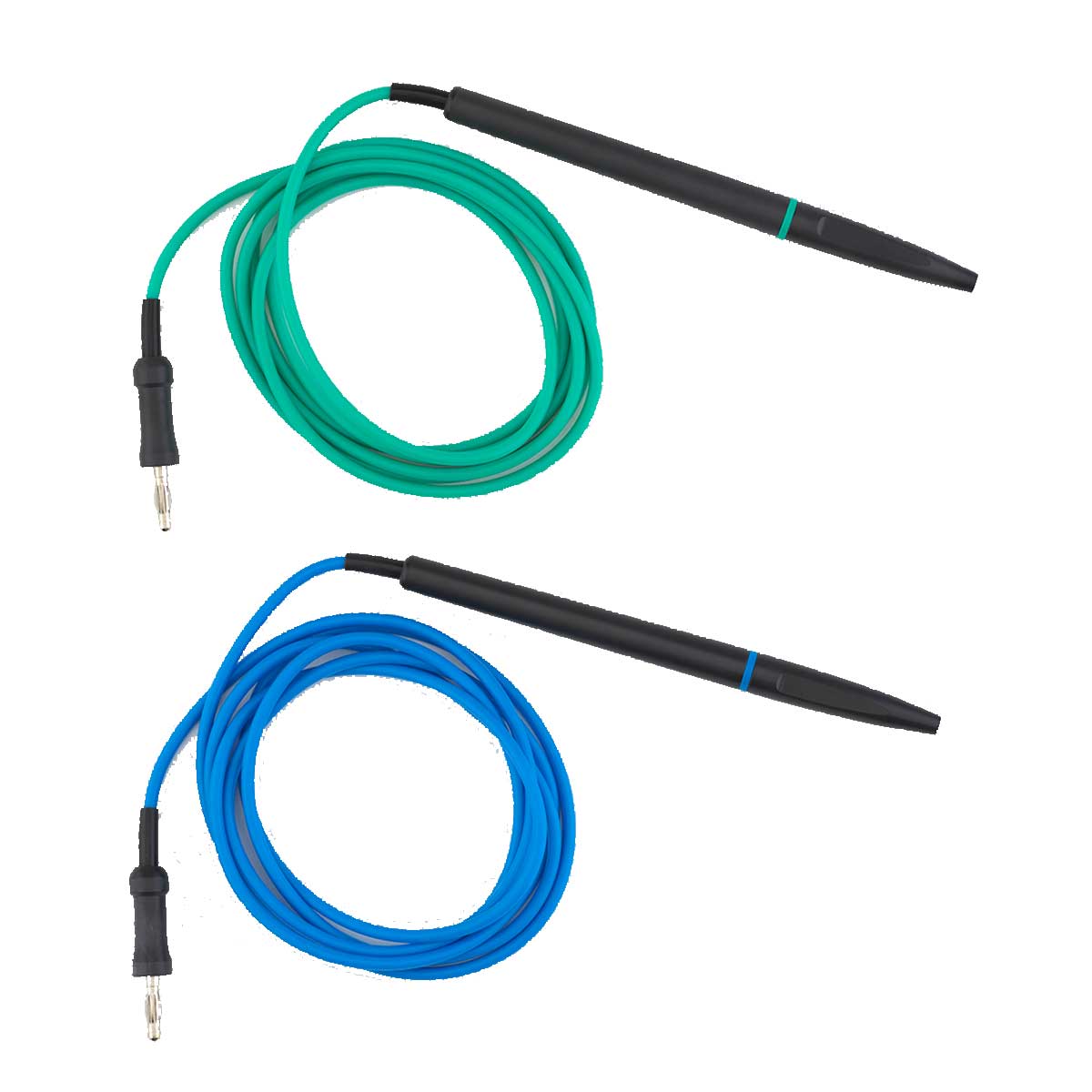

Green vs blue handpieces: which one fits my Electron?
Match the handpiece to the electrode style you use: the green tungsten handpiece accepts only green electrodes, and the blue-style handpiece accepts only blue-style electrodes. Older-model Electron units use the blue style.
Green tungsten handpiece
The Bonart Hand Piece for ART-E1 is a replacement green tungsten handpiece with cable for the Electron. It needs no assembly and plugs directly into the handpiece socket on the Electron front panel. The listing also notes compatibility with Jorvet J470 units.

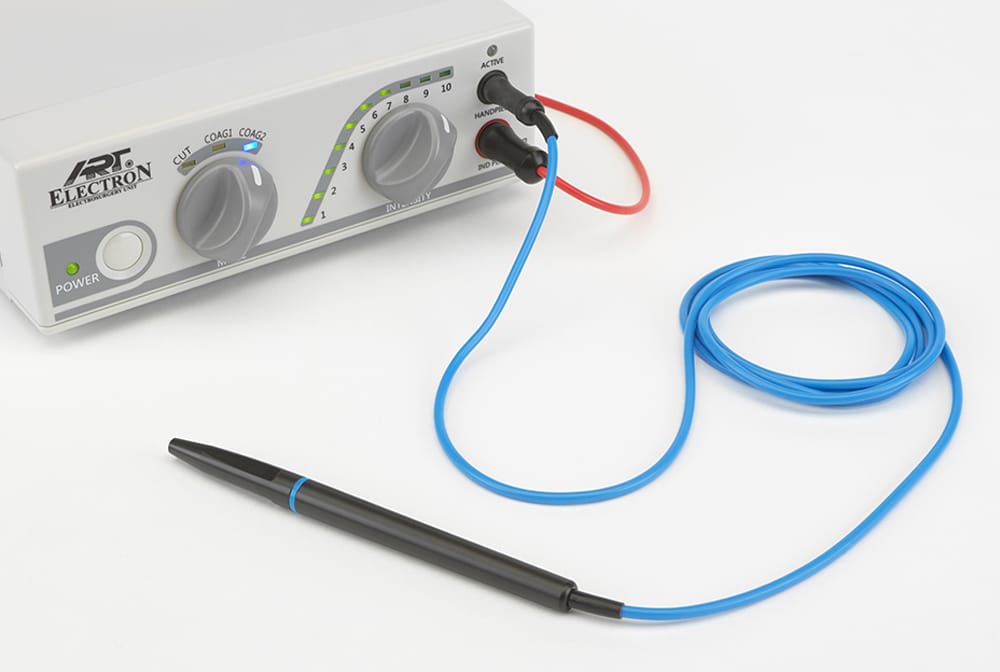

Blue-style replacement handpiece (EU0016-052)
The Bonart Blue Replacement Handpiece EU0016-052 is a blue-style handpiece with cable for older-model Electron units and regional variants. It works with blue-style electrodes only and is also compatible with older Jorvet J470 units that use blue electrodes. Both handpiece listings state they are for use by licensed technicians only.
| Handpiece | Works with | Fits |
|---|---|---|
| Green Tungsten Hand Piece for ART-E1 | Green tungsten electrodes only | Electron (ART-E1); Jorvet J470 |
| Blue Replacement Handpiece EU0016-052 | Blue-style electrodes only | Older-model Electron units and regional variants; older Jorvet J470 units with blue electrodes |
Not sure which style you have? Call us with your unit details before ordering. For a broader look at how dental handpieces differ by job, see our guide to types of dental handpieces.

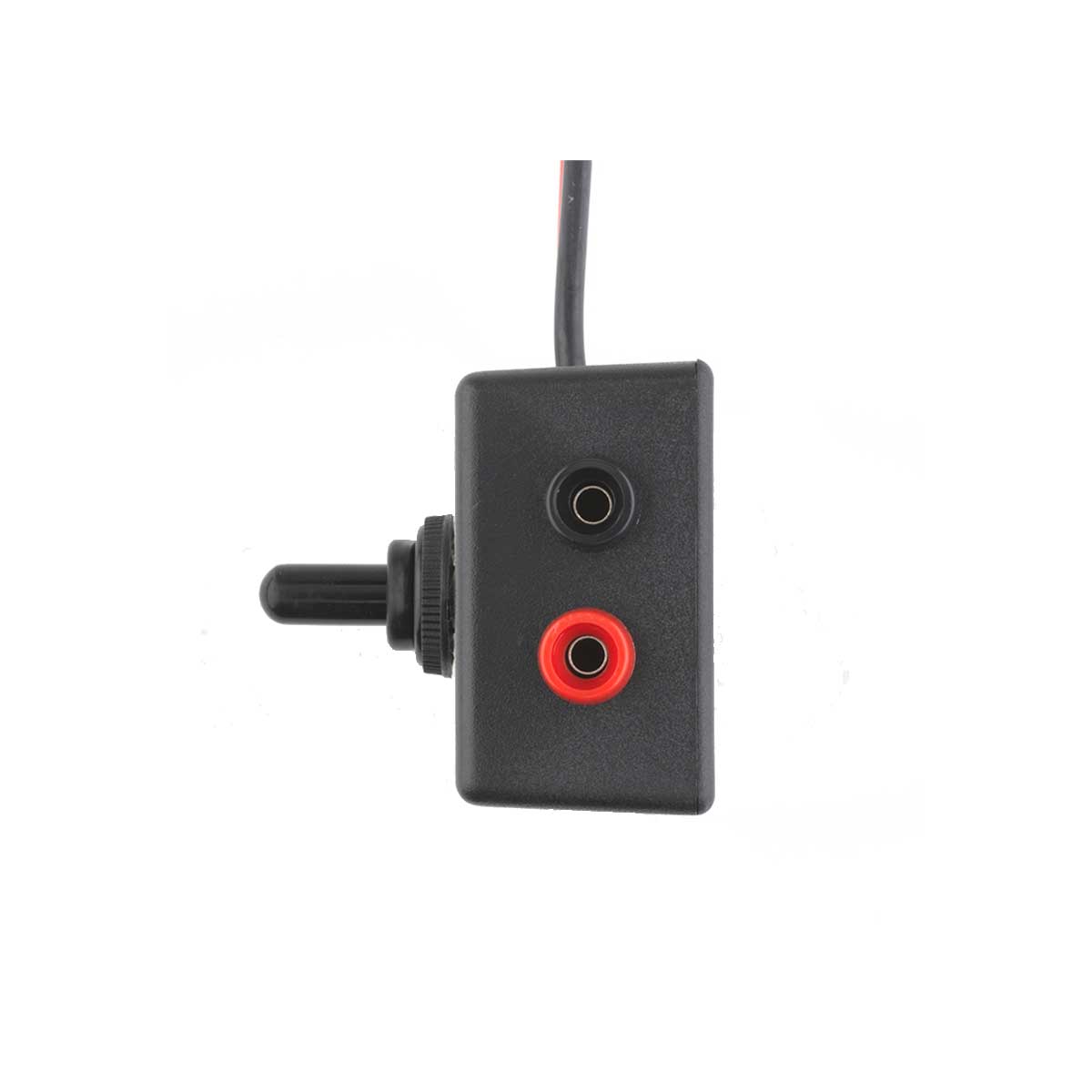

What does the ART-E1 bipolar converter do?
The Bonart Bipolar Converter for ART-E1 (EU0013-002) permits the use of bipolar prongs and handpieces with the Electron. It does not convert the system to operate in bipolar mode.
Bipolar prongs, a bipolar handpiece and possibly other accessories are required and are not included. Those items are not sold or provided by Bonart. Bonart recommends the converter only for doctors and technicians familiar with, and in specific need of, bipolar conversion, and advises checking plug compatibility before purchase.

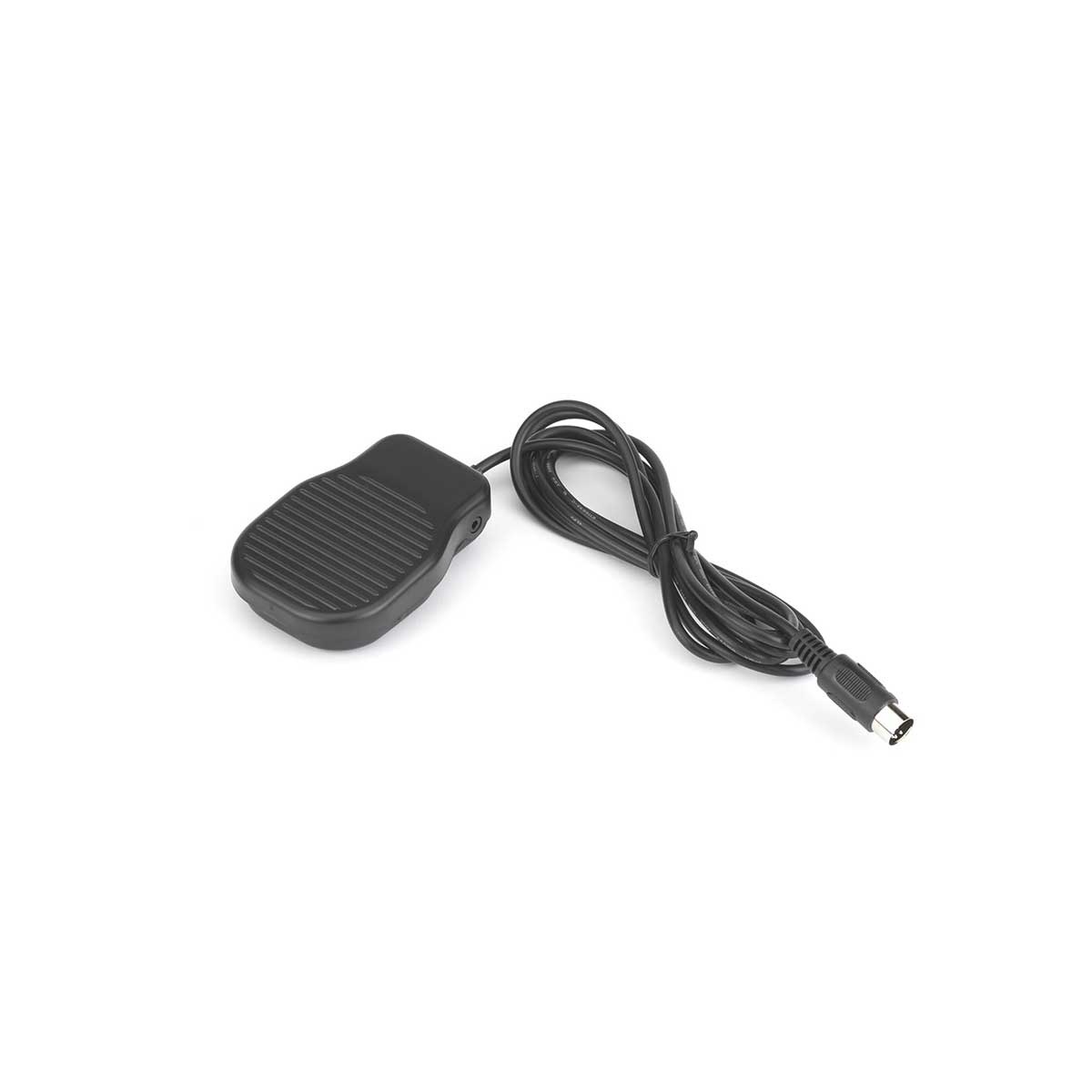

Foot switch and other ART-E1 replacement parts

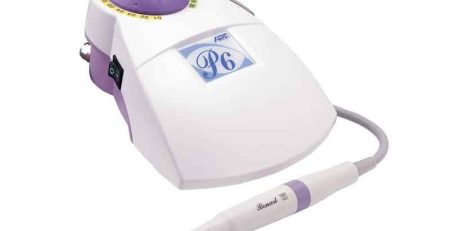

The Electron uses the same Bonart Universal Foot Switch PP0031-002 as most Bonart units. It is compatible with the Maverick, Marquee (25K or 30K), Pelican, Electron, SP1, Kelpie and PL3, but not the Piper (ART-P6), which has its own foot switch and power cord.

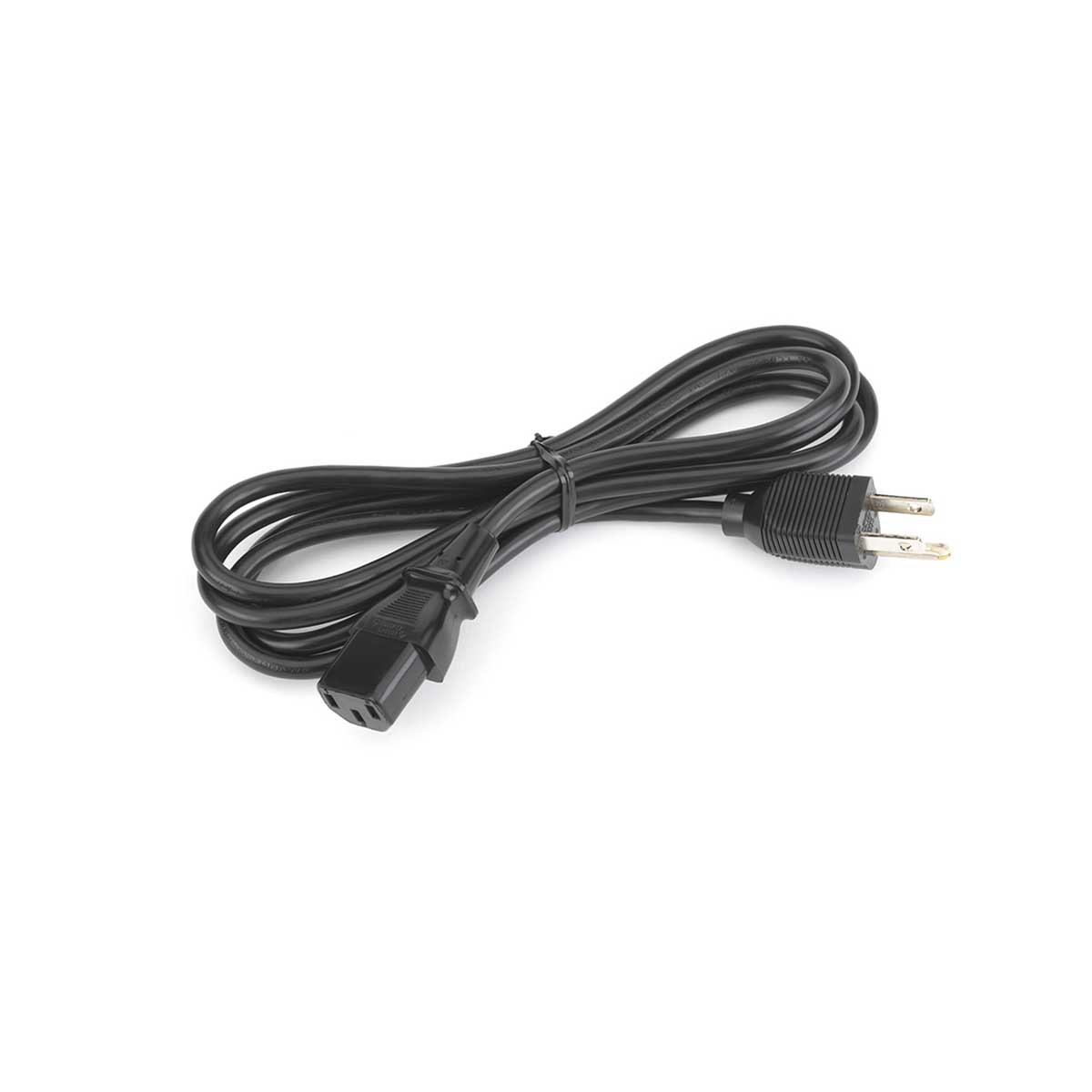

Our Bonart scaler parts and accessories guide covers foot switches, the Bonart Universal Power Cord PP0018-021 and other replacement parts, and our Bonart ultrasonic scalers comparison covers the scaler line.
Shop the Products
Frequently Asked Questions
What modes does the Bonart ART-E1 Electron have?
The Bonart ART-E1 Electron has 3 operating modes: Cut, Coag 1 and Coag 2. It also offers 10 power level settings, with a maximum output of 50W at a 400 ohm load. Mode and power choices for a given procedure should follow the Bonart instructions for use.
What is included with the ART-E1 electrosurgery unit?
The ART-E1 includes the Electron main unit, a power cord, the PP0031-002 universal foot switch, the EU0004-002 indifference/grounding plate, the EU0003-032 E1 hand piece and the TE0002-002 assorted electrode set of 7. The bipolar converter is sold separately.
Can I use green electrodes in a blue handpiece?
No. The green tungsten handpiece works with green tungsten electrodes only, and the blue-style handpiece works with blue-style electrodes only. Older-model Electron units use the blue style, so confirm which handpiece you have before ordering electrodes.
Does the bipolar converter turn the ART-E1 into a bipolar unit?
No. The EU0013-002 bipolar converter does not convert the ART-E1 to operate in bipolar mode. It only allows bipolar prongs and handpieces to be used, and those items are sold separately and are not sold or provided by Bonart.
What warranty does the Bonart ART-E1 carry?
The ART-E1 PC board, hand piece and power cord each carry a 1-year limited warranty. The foot switch, electrodes and indifference/grounding plate each carry a 90-day limited warranty.
Related Guides
The ART-E1 Electron is a compact cut and coag unit with a complete starter kit. The key to ordering parts is matching green to green and blue to blue, and remembering that the bipolar converter is an adapter, not a mode change. Browse the full Bonart line at Chase Dental Supply, or email sales@chasedentalsupply.com with your unit details.
Need electrodes or a replacement handpiece?
Tell us your Electron model and electrode color and we will help you match the right part. Call for current pricing.
