TPC LED Operatory Lights Compared: Lucent, Lustrous, Radiant and Luminous

TPC LED operatory lights come in four models: Lucent, Lustrous, Radiant and Luminous, and the right one depends on how you mount it and which features you want. TPC builds all four with a fanless static heat sink and a 100 mm x 180 mm illumination pattern at 700 mm, and Chase Dental Supply carries each model plus the posts and bushings to install them.

This comparison lays out the published specs side by side so you can pick the right light for a new operatory or a retrofit.

Key Takeaways

• All four TPC LED operatory lights use a static heat sink with no fan and a 24 volt AC/DC output.
• Lucent, Radiant and Luminous list 3,000 to 35,000 lux at 700 mm; Lustrous lists 8,000 to 30,000 lux.
• Lucent and Luminous offer ceiling mount versions, and Lucent, Radiant and Luminous offer sensor versions.
• Luminous light handles are removable and sterilizable, according to TPC.
• A light post (LP48 or LP48-RI) must be ordered when the light is purchased on its own.

What should you look for in an LED dental operatory light?

Look at light intensity range, mounting style, cooling, infection control features and fit with your existing chair. Those five factors decide whether a light will work in your operatory day to day.

An LED operatory light is the overhead light that illuminates the oral cavity during treatment. LED models have largely replaced halogen in new installs because they run cooler and do not need regular bulb changes.

• Intensity range (lux). A wide adjustable range lets you turn down the light for composite work and turn it up for detailed procedures.
• Mounting. Post mount lights attach to the chair or delivery post; ceiling mount lights free up the chair.
• Cooling. Fanless cooling means no fan noise and no fan to collect debris.
• Handles. Removable, sterilizable handles support your infection control routine.
• Post compatibility. The right post and bushing make retrofits straightforward.

Lucent vs Lustrous vs Radiant vs Luminous: how do TPC LED operatory lights compare?

The four lights share the same illumination pattern and cooling approach, so the differences come down to intensity range, mounting options and handle design. The table summarizes what TPC publishes for each model.

All four list 110V/220V input at 60/50 Hz, 24 volt AC/DC output and a 100 mm x 180 mm illumination area at 700 mm.

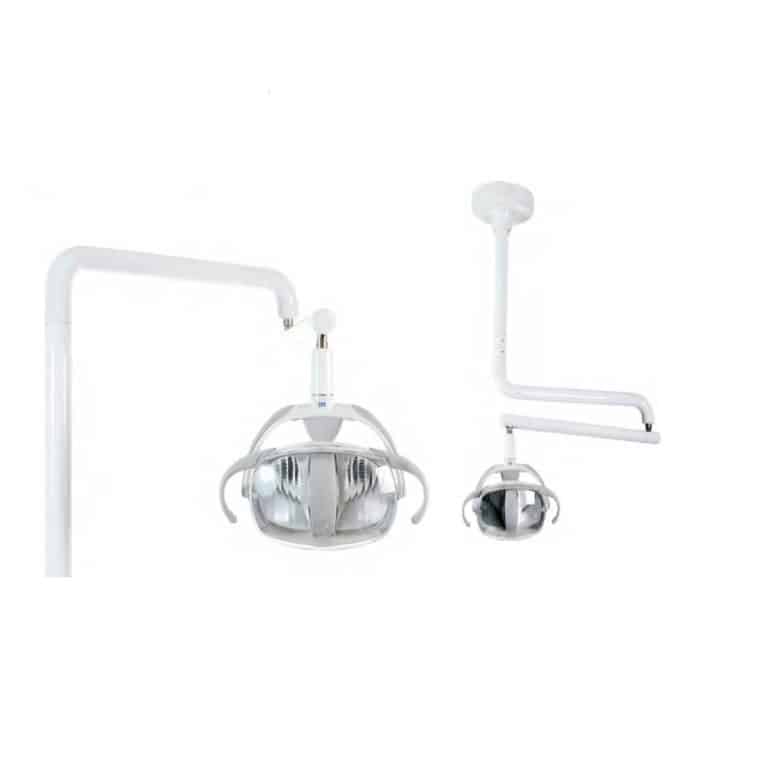

TPC Lucent LED Operatory Light

The TPC Lucent LED Operatory Light offers the most mounting choices in the lineup. It comes as a post mount, a sensor post mount and two ceiling mount versions, and the ceiling models include a standard extension post for 8, 9 or 10 foot ceilings.

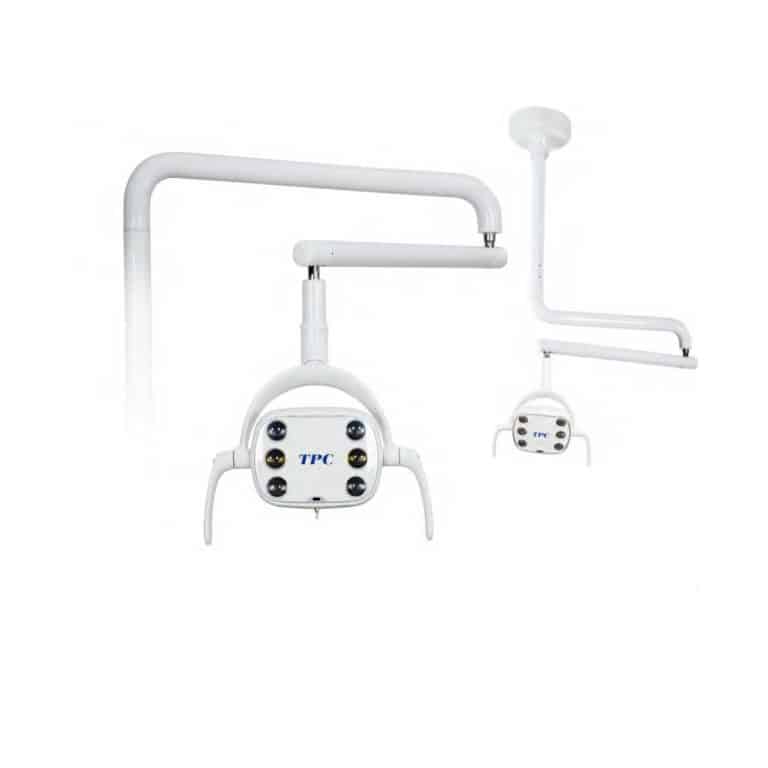

TPC Lustrous LED Operatory Light

The TPC Lustrous LED Operatory Light lists a dimmer range of 8,000 to 30,000 lux and a 5,000 Kelvin color temperature. TPC’s Laguna package listing describes the L550 as having dual intensity and dual axis light head rotation.

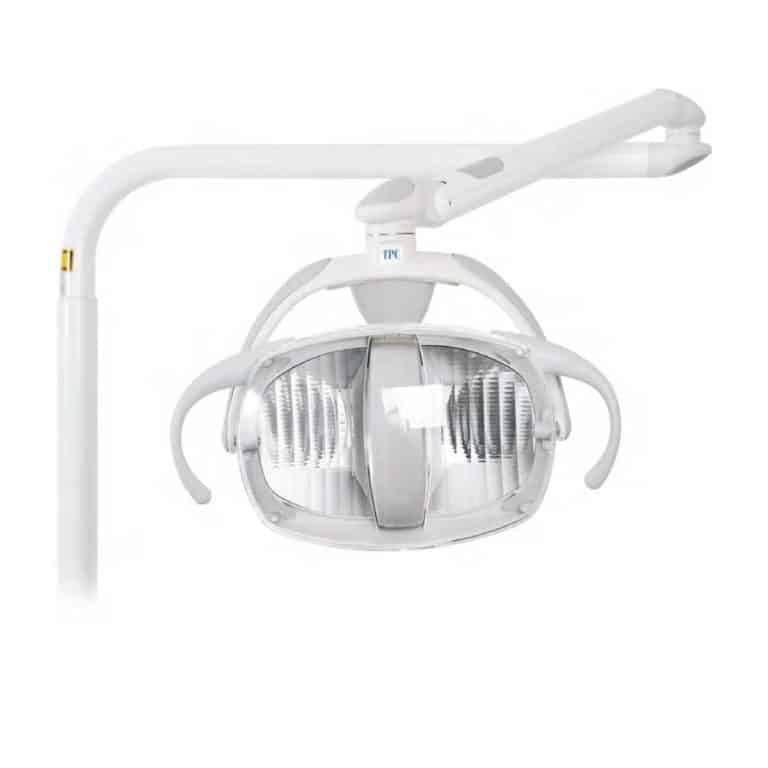

TPC Radiant LED Operatory Light

The TPC Radiant LED Operatory Light is a post mount light offered in standard (R6101-LED) and sensor (R6105-LED) versions. It shares the 3,000 to 35,000 lux range of the Lucent and uses the LP48-RI light post.

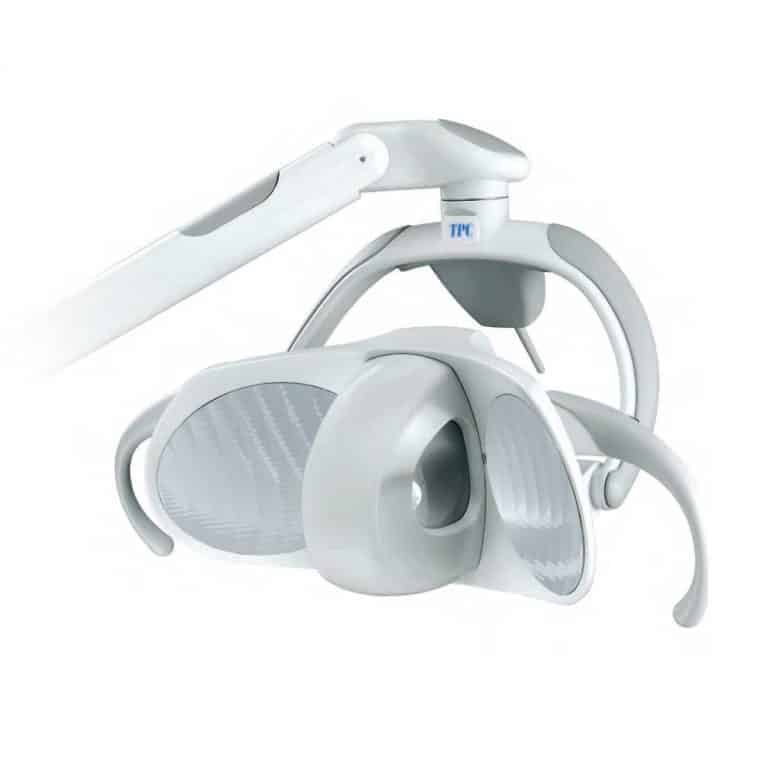

TPC Luminous LED Operatory Light

The TPC Luminous LED Operatory Light adds removable, sterilizable light handles. It is available as a post mount, a sensor post mount and a ceiling mount (L7901) that includes a 130 cm or 170 cm column.

Which TPC LED light fits your operatory?

Start with mounting, then narrow by features. If you need a ceiling mount, choose between Lucent and Luminous; if you want sterilizable handles, choose Luminous.

• Ceiling mount with standard extension post: Lucent L690 or L695.
• Removable, sterilizable handles: Luminous.
• Simple post mount retrofit: Radiant or Lucent post versions.
• Fixed 5,000 Kelvin listing and dual intensity: Lustrous.

If you are outfitting a full room, TPC also bundles lights into chair packages. The TPC Laguna LED Operatory Packages lists the Lucent L600-LED and the Lustrous L550-LED depending on model, and the TPC Mirage LED Operatory Packages pairs a Mirage hydraulic chair with a Lucent post mounted light. Our guide to TPC Mirage and Laguna chairs and stools covers those packages.

How do you mount a TPC LED operatory light?

Order the correct light post with the light, and add a bushing if you are fitting it to an existing chair. TPC notes that a light post must be ordered whenever the light is purchased separately.

The TPC Light Posts & Accessories listing includes the LP-48 straight 48″ post for TPC, Belmont and P&C chairs, the LP-48-RI for Faro, DTE and Ritter, and L690 extension posts for 8 to 11 foot ceilings. It also lists a wall mount bracket kit (408500) for Radiant and Luminous lights.

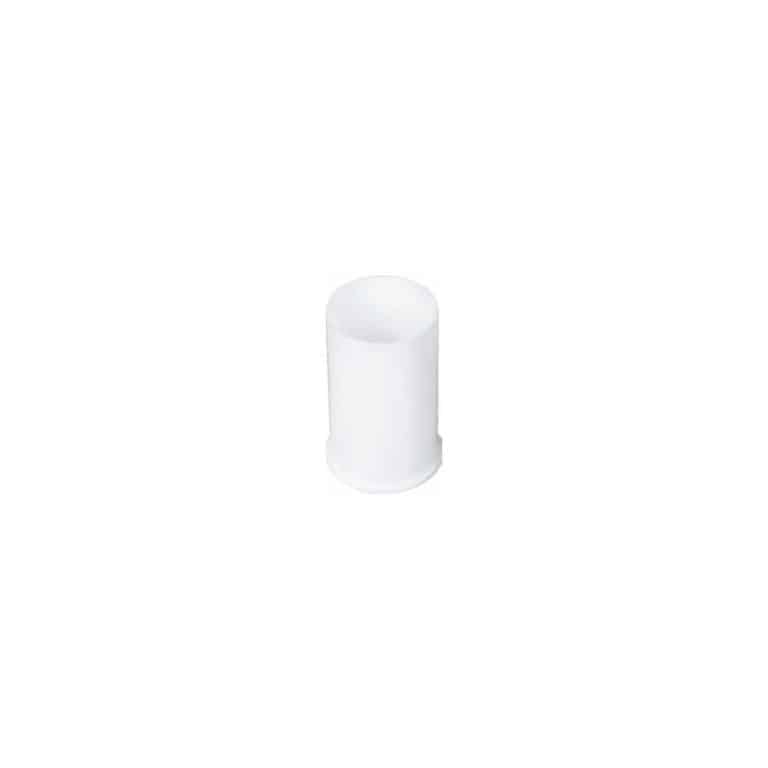

TPC Nylon Bushings adapt a 2″ post to different chair fittings, with listed versions for P&C, A-dec, Marus, Belmont and Knight lights, and for Faro, Ritter K, Dental EZ and others. On Mirage chairs, the TPC Mirage Touch Pad #TP-2005 controls both the chair and the LED operatory light.

Pair your new light with the right curing equipment, too. Our TPC LED curing light guide covers cordless models and radiometers.

Shop the Products

Frequently Asked Questions

What is the brightest TPC LED operatory light?

The TPC Lucent, Radiant and Luminous lights each list a range of 3,000 to 35,000 lux at 700 mm, the highest maximum in the lineup. The Lustrous lists 8,000 to 30,000 lux in dimmer mode. All four share a 100 mm x 180 mm illumination area at 700 mm.

Do TPC LED operatory lights have a cooling fan?

No. TPC lists a static heat sink with no fan as the cooling system on the Lucent, Lustrous, Radiant and Luminous lights. Fanless cooling avoids fan noise and a fan that collects debris.

Which TPC operatory lights can be ceiling mounted?

The Lucent offers ceiling mount versions (L690-LED and the L695-LED sensor model) that include a standard extension post for 8, 9 or 10 foot ceilings. The Lustrous offers the L570-LED ceiling mount, and the Luminous offers the L7901-LED ceiling mount with a 130 cm or 170 cm column.

Do I need to order a light post with a TPC operatory light?

Yes, if you are buying the light on its own. TPC notes that the LP48 post (Lucent, Lustrous) or LP48-RI post (Radiant, Luminous) must be ordered when the light is ordered separately. Chase Dental Supply can help confirm the right post for your chair.

Which TPC LED light has sterilizable handles?

The TPC Luminous LED operatory light has removable, sterilizable light handles, according to TPC. It is available in post mount, sensor post mount and ceiling mount versions.

Any of the four TPC LED operatory lights will give you fanless, adjustable illumination; the choice comes down to mounting and handle design. Compare the specs, confirm your post and bushing, and shop the full TPC lineup at Chase Dental Supply. Questions about fit with your chair can go to sales@chasedentalsupply.com.
