TPC Mirage and Laguna Dental Chairs, Delivery Systems and Stools

TPC Mirage and Laguna dental chairs give you two ways to outfit an operatory: buy the chair and delivery system separately, or order a complete LED operatory package with chair, delivery, light and cuspidor. TPC also makes matching doctor’s, assistant’s, hygienist and saddle stools, and Chase Dental Supply carries the full lineup.

This guide covers what each chair, delivery system and stool includes so you can plan a new room or replace one piece at a time.

Key Takeaways

• The Mirage Hydraulic Patient Chair 4000 lists three programmable positions plus a preset exit position and a 5 year warranty.
• The Mirage LED Operatory Package includes the chair, a 3 handpiece delivery system, a Lucent LED light and a porcelain cuspidor.
• The Laguna LED Operatory Package offers Lucent or Lustrous lights, with an orthodontic cabinet in ortho models.
• Delivery can be added separately with the Mirage Swing Mount Unit 3500 and rear swing mount suction package (TPC chairs only).
• TPC stools list specific seat heights, from 18.25″ on the DR-1102 to 31.8″ on the SS-5105 saddle stool.

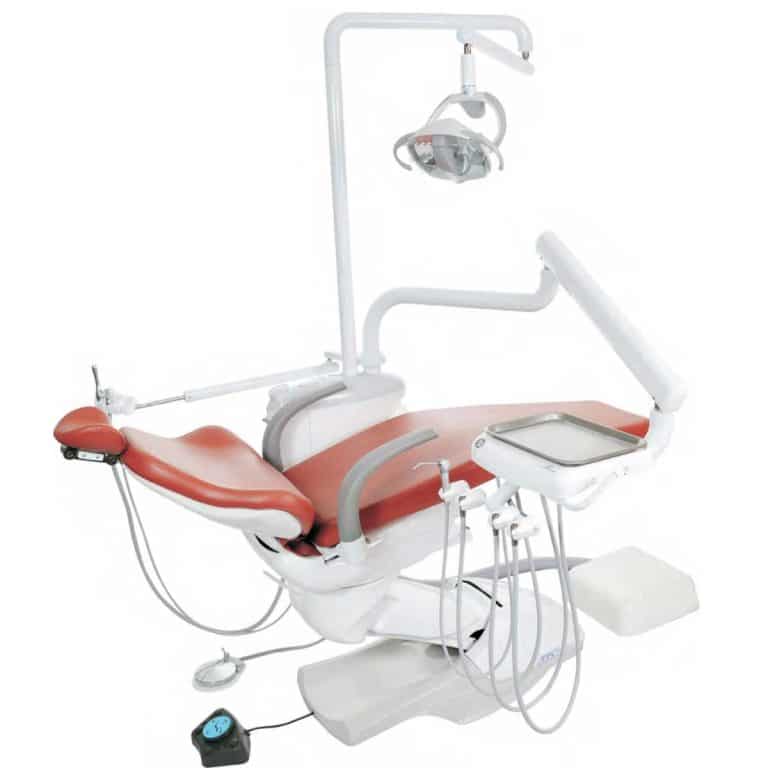

What is included in a TPC Mirage LED Operatory Package?

A TPC Mirage LED Operatory Package is a complete operatory: patient chair, delivery system, operatory light and cuspidor with assistant’s instrumentation. It is the simplest way to equip a new room with matched components.

According to TPC, the TPC Mirage LED Operatory Package includes the 4000 hydraulic chair with wide back and lumbar support, a double articulating headrest and 30 degree swivel. The delivery side is an asepsis 3 handpiece control with flex arm, air brake and wet/dry variable speed foot control, plus a deluxe utility center with air and water filters and regulators.

The package adds an L800 Lucent post mounted light with dual intensity and a porcelain cuspidor with timed bowl rinse and cup filler. The assistant’s side includes a telescoping 4 position package with HVE, saliva ejector, solids collector and clean water system.

Add-on options include monitor brackets, 15″ and 17″ LCD monitors and a built-in Advance 800 piezo scaler. Our guide to TPC piezo and ultrasonic scalers covers that scaler in detail.

TPC Mirage and Laguna dental chairs: which should I choose?

Both lines offer programmable positions and complete operatory packages, so the choice usually comes down to chair style, light preference and whether you need an orthodontic configuration. The table compares what TPC lists for each.

TPC Mirage Hydraulic Patient Chair 4000

The TPC Mirage Hydraulic Patient Chair 4000 lists three operator-programmable positions plus one preset exit position, with an electronic foot switch for preposition and auto return. Safety features include fuse and surge protection, a toe guard and a safety shut-off plate.

It has all metal construction, a thin back with lumbar support, a double articulating headrest, a pivoting armrest and seamless asepsis upholstery. TPC lists 110V or 220V input and a 5 year warranty.

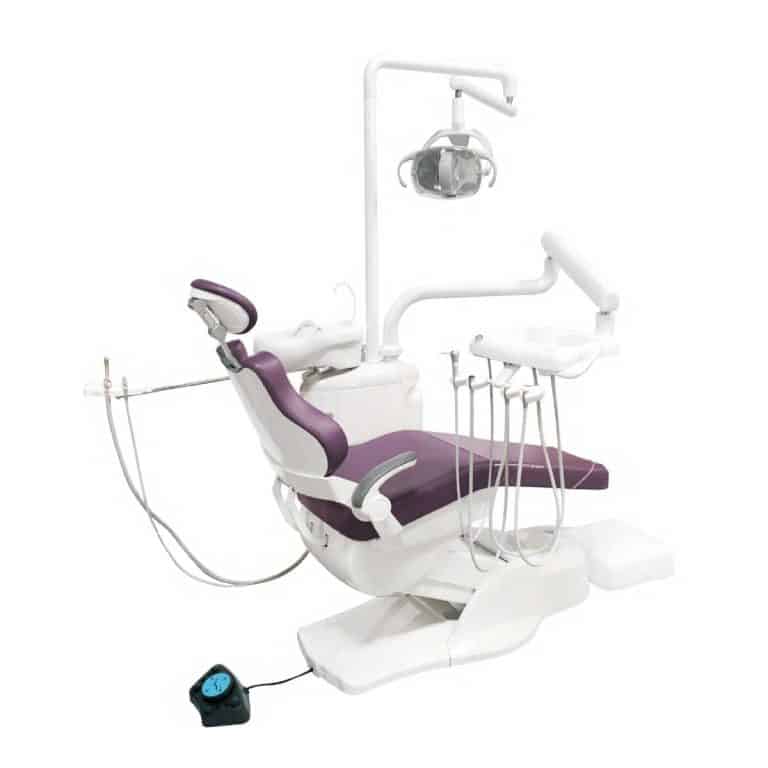

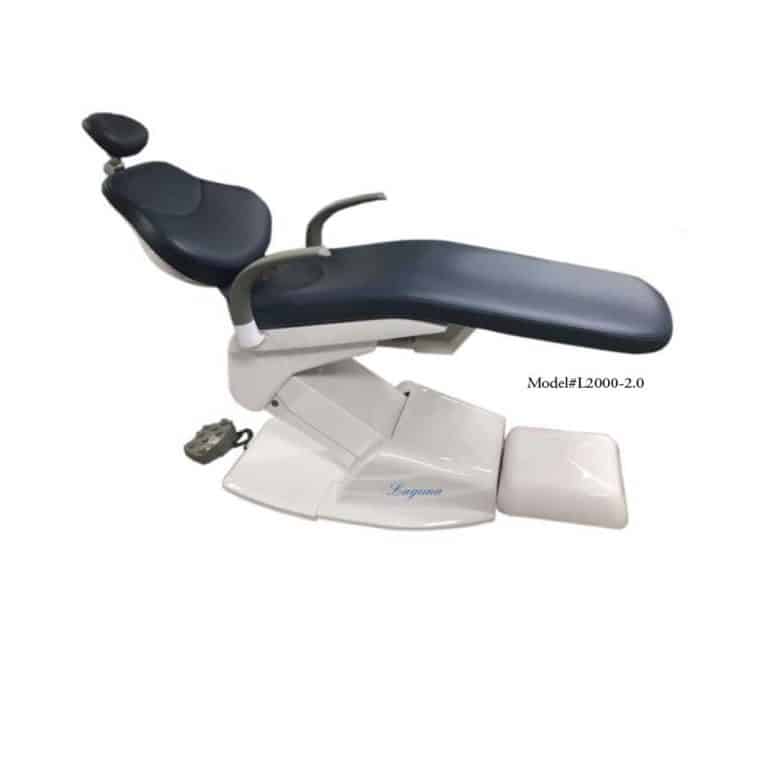

TPC Laguna Dental Chair and Laguna LED Operatory Package

The TPC Laguna Dental Chair is designed around patient comfort, with contoured upholstery, an adjustable headrest and adjustable height, backrest and leg rest. TPC lists an integrated delivery system with high-speed and low-speed handpieces and a 3-way syringe.

The TPC Laguna LED Operatory Package adds the operatory light and cuspidor. Choose the Lucent L600-LED or the Lustrous L550-LED; our comparison of TPC LED operatory lights explains the difference.

Can you add a TPC delivery system to an existing chair?

Yes, if it is a TPC chair. The Mirage swing mount delivery and rear suction packages are listed for TPC chairs only, so confirm your chair model first.

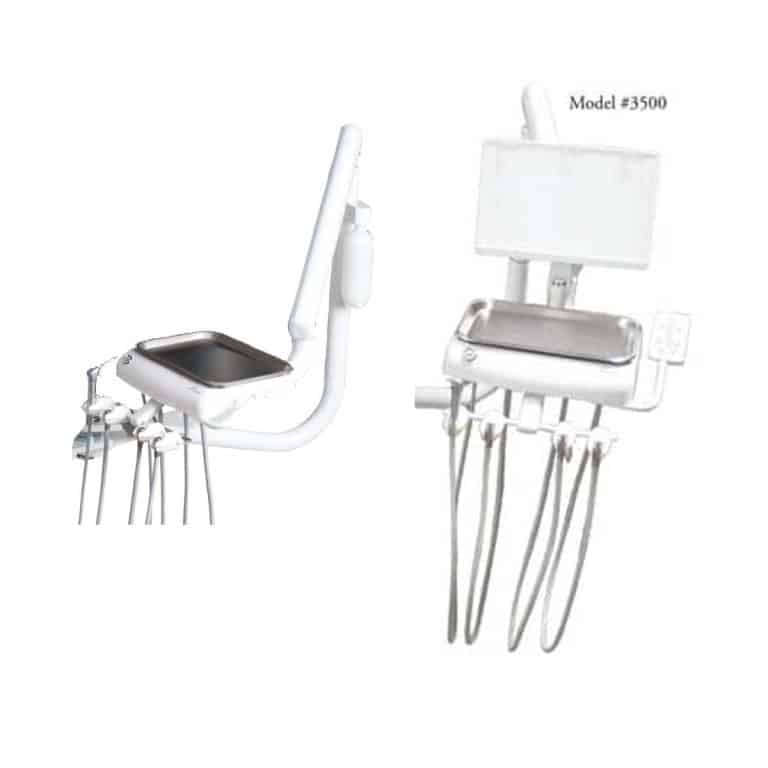

The TPC Mirage Swing Mount Unit with Chair Bracket, Model 3500 includes a rotating asepsis 3 handpiece control with coolant controls, a flex arm with air brake, wet/dry variable speed foot control, a utility center with filters and regulators, master shut-off valves, a 3-way syringe and a clean water system. The TPC Mirage Rear Swing Mount Suction Package, Model 550 adds a syringe, HVE and saliva ejector on the assistant’s side.

Which TPC dental stool is right for each team member?

Choose stools by role: doctors need adjustable lumbar support, assistants need a higher seat with a foot ring and abdominal support, and saddle stools suit clinicians who prefer an open hip angle. TPC lists specific dimensions for each model.

• TPC Mirage Doctor’s Stool DR-1102: three seat function, seat pan tilt, six-way lumbar support, 18″ seat, 18.25″ to 25″ seat height.

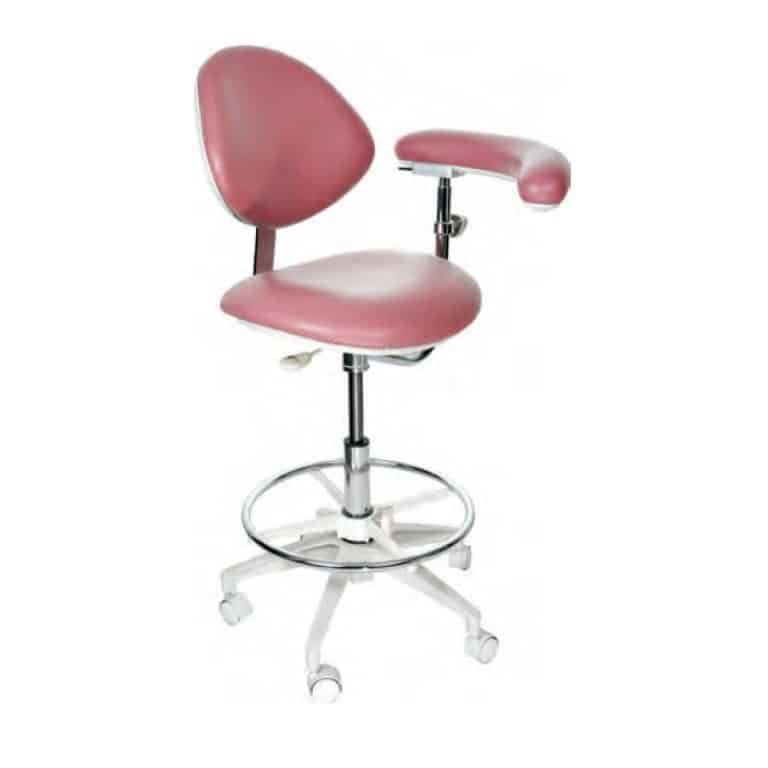

• TPC Mirage Assistant’s Stool AS-1101: six-way lumbar support, adjustable foot ring, 0″ to 3.5″ abdominal support adjustment, 21.5″ to 27.5″ seat height.
• TPC Mirage Hygienist Stool HY-5107: 17″ seat, 20″ to 25″ seat height, 0″ to 3.25″ backrest adjustment.
• TPC Mirage Saddle Stool SS-5105: 16″ saddle seat, 24.5″ to 31.8″ seat height.
• TPC MICA Saddle Stool with Armrests DRSA-7100: saddle seat with armrests, 18″ x 15.7″ seat, 20″ to 25″ seat height.

For imaging rooms, the TPC Mirage X-Ray Chair XR-6101 offers an adjustable headrest, a pneumatic height pump, arm and leg rests, an 18″ seat and 21.5″ to 27.5″ seat height.

Shop the Products

Frequently Asked Questions

What comes in the TPC Mirage LED Operatory Package?

The TPC Mirage LED Operatory Package includes the 4000 hydraulic patient chair, an asepsis 3 handpiece delivery system with flex arm and air brake, an L800 Lucent post mounted LED light and a porcelain cuspidor with timed bowl rinse. It also includes a telescoping 4 position assistant’s package with HVE and saliva ejector.

How many programmable positions does the TPC Mirage chair have?

The TPC Mirage Hydraulic Patient Chair 4000 lists three operator-programmable positions plus one preset exit position. An electronic foot switch handles preposition and auto return.

What is the difference between the Mirage and Laguna operatory packages?

The Mirage package uses the 4000 hydraulic chair and an L800 Lucent light. The Laguna package uses the L2000 electromechanical chair with a choice of Lucent L600 or Lustrous L550 light, and ortho models add the OMC-2375 cabinet. Both include a porcelain cuspidor and 3 handpiece delivery.

Can the Mirage swing mount delivery system fit other chairs?

TPC lists the Mirage Swing Mount Unit 3500 and the Mirage Rear Swing Mount Suction Package 550 for TPC chairs only. Confirm your chair model with Chase Dental Supply before ordering.

Which TPC stool is best for dental assistants?

The TPC Mirage Assistant’s Stool AS-1101 is built for assistants, with six-way lumbar support, an adjustable foot ring and abdominal support. It lists a seat height range of 21.5 to 27.5 inches, higher than the DR-1102 doctor’s stool.

Whether you order a complete Mirage or Laguna LED operatory package or build a room piece by piece, TPC chairs, delivery systems and stools are designed to work together. Shop the full TPC operatory lineup at Chase Dental Supply, or email sales@chasedentalsupply.com with your room plan and we will help you choose.
