TPC Superb Vac Wet Ring Vacuums: Choosing Dental Suction for Your Practice

Choosing a TPC Superb Vac wet ring vacuum comes down to how many people use suction at the same time in your practice. TPC builds the Superb Vac line in four configurations, from the single motor WV3 up to the twin motor WV10, and Chase Dental Supply carries each one along with traps and mechanical room accessories.

This guide explains how a wet ring dental vacuum works, what the Superb Vac includes, and how to match a model to your office.

Key Takeaways

• The Superb Vac line includes the WV3, WV5, WV6 and WV10, with one or two motors at 1.2 HP or 2 HP each.
• TPC lists the WV3 as a 3 user vacuum and the overall line as accommodating 1 to 10 users.
• Product features include aluminum-bronze construction, a stainless steel impeller, a clear-bowl filter and a noise level under 58 dB.
• A water recycling option (WV3R) is listed as saving up to 80% of water use.
• TPC states the Superb Vac is NFPA 99C level 3 compliant and carries a 5-year full product limited warranty.

What is a wet ring dental vacuum?

A wet ring dental vacuum is a central suction pump that uses a ring of water inside the pump housing to seal a spinning impeller and create vacuum. It handles the mix of fluid, debris and air that comes off high volume evacuation (HVE) and saliva ejectors throughout the day.

Wet ring pumps are a long-established choice for dental offices because they are simple and durable. The tradeoff is water use, which is why TPC offers a water recycling option on the Superb Vac.

What features does the TPC Superb Vac include?

Every Superb Vac model shares the same core build. According to TPC’s product listing, these are the features that come standard across the line:

• Durable aluminum-bronze construction with a stainless steel impeller
• Computer balanced, sealed bearings in the motor
• Large capacity, easy to clean filter with a clear bowl for quick inspection
• Noise level of less than 58 dB
• 110V or 220V, 50/60 Hz operation with a 20 amp circuit breaker
• 3/4″ inlet, 2 3/8″ air exhaust and 3/8″ city water connections
• NFPA 99C level 3 compliance and a 5-year full product limited warranty

The clear filter bowl is a practical detail. Your team can see when the filter needs attention without opening the pump, which makes routine checks part of the closing routine instead of a repair call.

Which TPC Superb Vac wet ring vacuum should I choose?

Choose the smallest Superb Vac that comfortably covers the number of people using suction at the same time, plus room for growth. Single motor models fit smaller offices, while twin motor models suit larger practices.

The table below lists each model as TPC names it. TPC confirms the WV3 as a 3 user unit, so for the other models, check the manufacturer’s sizing chart or call us before you order.

Superb Vac WV3 and WV5: single motor

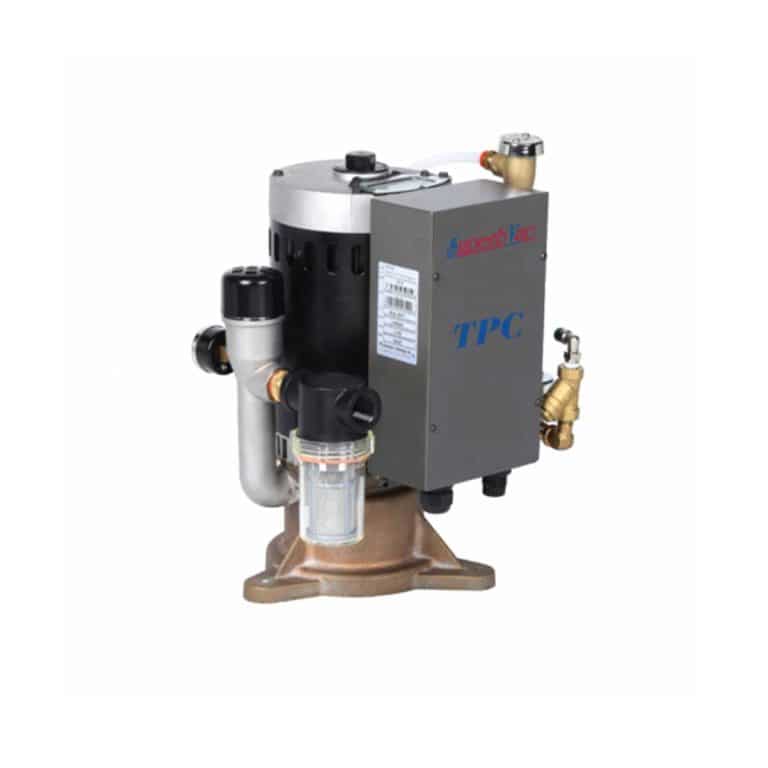

The TPC Superb Vac Wet Ring Vacuum, Single Head, 1 x 1.2 HP WV3 is the entry point and is listed for 3 users. It is also offered as the WV3R with a water recycler. The TPC Superb Vac Wet Ring Vacuum, Single Head, 1 x 2 HP WV5 steps up to a single 2 HP motor for offices that need more suction from a single pump.

Superb Vac WV6 and WV10: twin motor

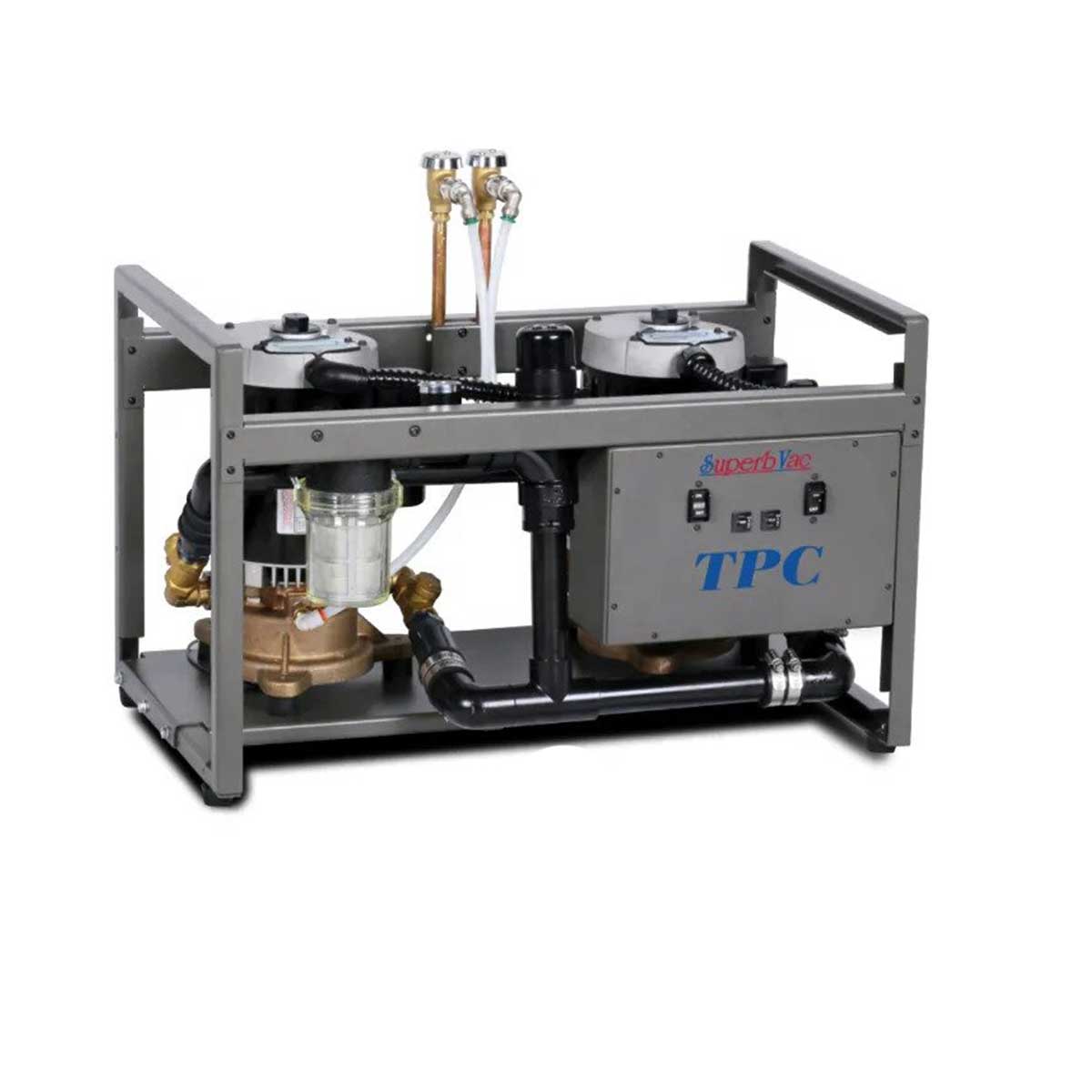

The TPC Superb Vac Wet Ring Vacuum, Single Head, 2 x 1.2 HP WV6 pairs two 1.2 HP motors, and the TPC Superb Vac Wet Ring Vacuum, Single Head, 2 x 2 HP WV10 pairs two 2 HP motors. These twin configurations are built for busier practices where several operatories run HVE at once.

How do you size dental suction for your practice?

Size dental suction by counting simultaneous users, then checking that load against the manufacturer’s sizing chart. A “user” generally means one active HVE or saliva ejector line in use at the same moment.

• Count operatories that run at the same time during your busiest hour.
• Note procedures that rely heavily on HVE, such as restorative and surgical work.
• Plan for chairs you expect to add in the next few years.
• Size your air compressor at the same time so the mechanical room stays balanced.

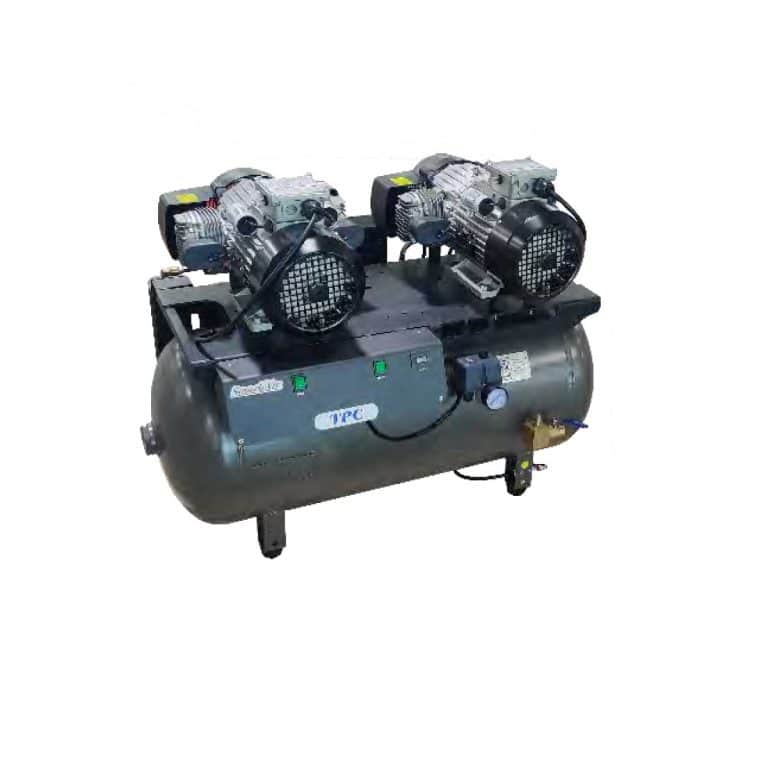

Air and suction work as a pair, so we recommend planning both together. Our guide to sizing a TPC Superb Air oil-less dental compressor walks through the compressor side, and models like the TPC Superb Air 3 HP Oil-less Air Compressor are common partners for a twin motor vacuum.

What accessories and supplies does a Superb Vac need?

Beyond the pump, plan for traps, controls and a sensible mechanical room layout. These small parts keep suction strong and maintenance simple.

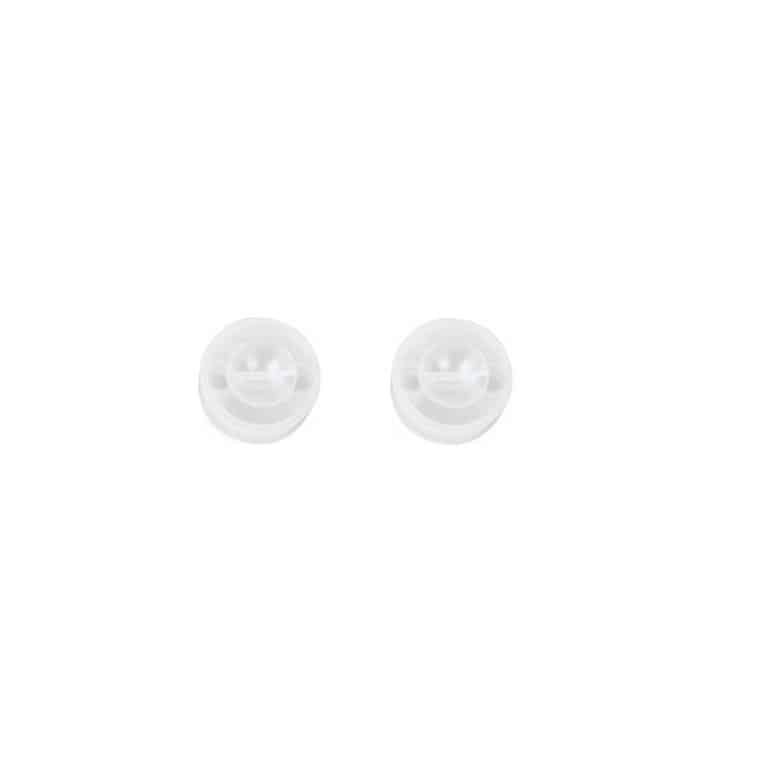

TPC Solid Collector Traps are disposable amalgam traps sold in packages of 100, in 1 7/8″ and 2 1/8″ clear sizes. The TPC Compressor & Vacuum Accessories listing includes CP-3 and CP-4 control panels, a CV22 compressor and vacuum stacking rack, and a WV-AWS single pump air water separator.

What if you cannot install central suction?

Temporary locations, mobile dentistry and backup needs call for portable suction rather than a central pump. TPC makes self-contained options for these cases.

The TPC Mobile Vacuum System System PC2530 is a portable, self-contained vacuum system rated at 75 cfm airflow and 80″ of water (6″ Hg) vacuum, with a 2 liter canister. TPC also positions it as a backup. The TPC Mirage Mobile Cart with Vacuum MC-501 combines a delivery cart with a vacuum package. Our guide to TPC portable dental systems and mobile carts covers these in detail.

For aerosol control at chairside, the TPC Proclean, Extra Oral Suction System PC-2800 is a different kind of suction: an extraoral unit with HEPA filtration, a UV-C lamp and a cold plasma ionizer. It works alongside your central vacuum rather than replacing it.

Shop the Products

Frequently Asked Questions

What is a wet ring dental vacuum?

A wet ring dental vacuum is a central suction pump that uses a ring of water inside the housing to seal a spinning impeller and create vacuum. It handles the fluid, debris and air that come off HVE and saliva ejector lines. The TPC Superb Vac is a wet ring design with a stainless steel impeller.

How many users does the TPC Superb Vac support?

TPC describes the Superb Vac line as accommodating 1 to 10 users across single and twin motor models. The WV3, with one 1.2 HP motor, is listed as a 3 user unit. For the WV5, WV6 and WV10, confirm capacity with the manufacturer’s sizing chart or call Chase Dental Supply at 888-548-7582.

Does the TPC Superb Vac use a lot of water?

Wet ring vacuums use water by design, but TPC offers a water recycling option. The WV3R combines the WV3 with a water recycler, and TPC lists water recycling as saving up to 80% of water. The pump connects to city water with a 3/8″ connection.

How loud is the TPC Superb Vac?

TPC lists the Superb Vac noise level at less than 58 dB. The motor uses computer balanced, sealed bearings. Actual sound in your office will also depend on where and how the pump is installed.

What warranty comes with the TPC Superb Vac?

TPC lists a 5-year full product limited warranty on the Superb Vac wet ring vacuum. TPC also states the line is NFPA 99C level 3 compliant. Refer to the documentation that ships with the unit for full warranty terms.

A TPC Superb Vac wet ring vacuum sized to your simultaneous users keeps suction steady through a full schedule. Count your users, check the sizing chart and plan your compressor alongside it. Shop the full TPC line at Chase Dental Supply, or email sales@chasedentalsupply.com with your operatory count for help choosing a model.
